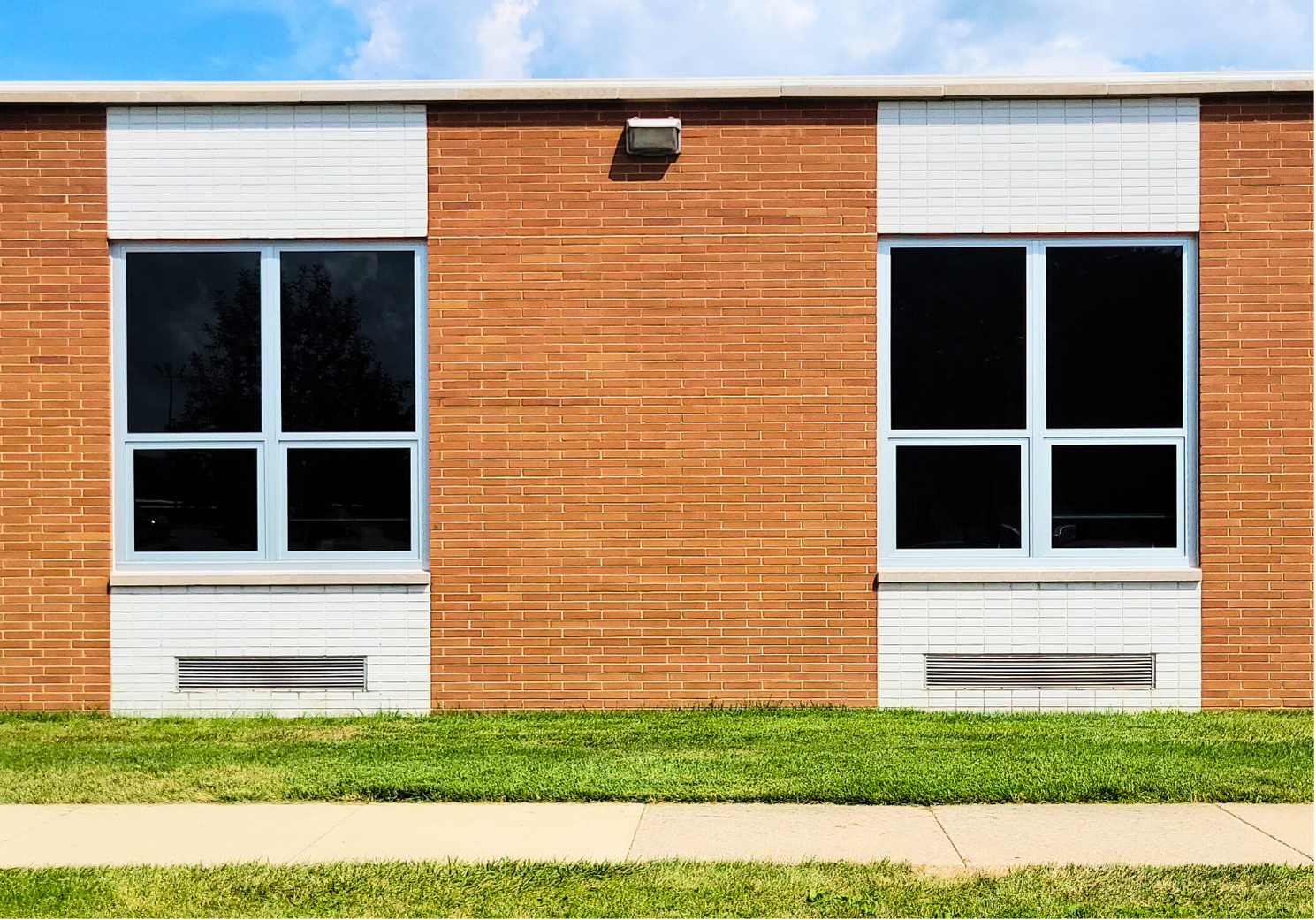

325 SS SUPER SENTRY

Energy-Efficient Thermal Commercial Aluminum Window System

Built for Durability, Designed for Versatility

The 325 SS Super Sentry window system by Capitol Aluminum & Glass Corporation is an overlap sash product engineered for exceptional structural integrity and long-term durability. Featuring thicker .125" extrusions, this 3-1/4" depth system delivers reliable performance against harsh environmental elements, making it a powerful choice for a wide range of commercial applications.

Key Features & Benefits

Superior Structural Integrity: Built with thicker .125" wall extrusions, providing significantly enhanced strength for demanding environments and lasting reliability.
Acoustic Comfort: Architecturally tested for an STC Sound Transmission rating, this window helps reduce noise, contributing to a quieter and more comfortable indoor environment.

Reliable Weather Resistance: Designed for high performance, minimizing air infiltration and limiting temperature transfer, contributing to comfortable interiors and energy efficiency.

Versatile Design: Utilizes a Pour and Debridge (P&D) thermal break and a flexible design suitable for a broad spectrum of architectural styles, offering both aesthetic appeal and reliable functionality.

Flexible Glazing Options: Accommodates 1" glass or panel, or 2-1/2" insulated panel, providing adaptable solutions for various project needs. The glass and panel options allow flexibility to achieve a better overall U-Value.

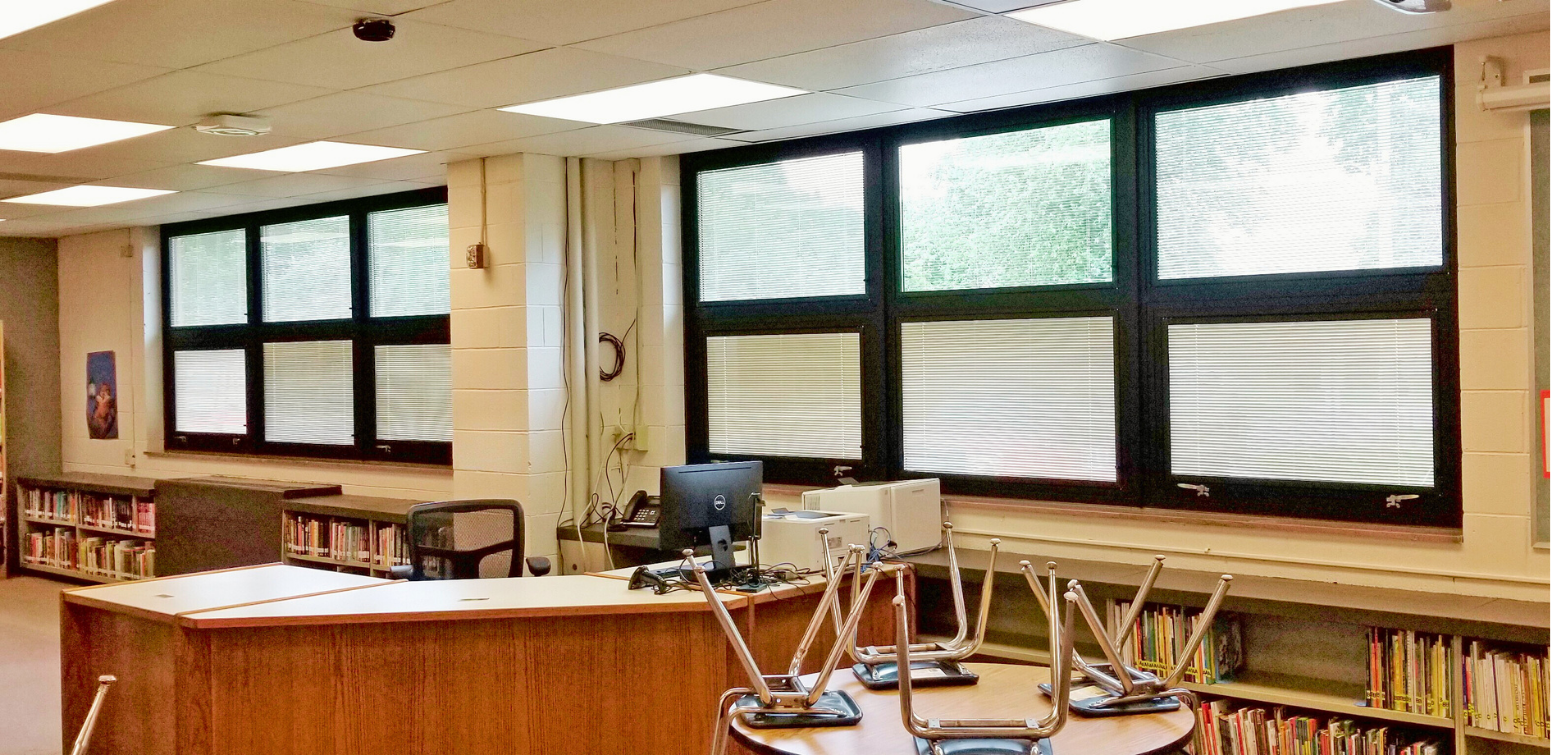

Optional Integrated Features: Available with integral 5/8" mini-blinds with hinged blind access panel and sliding wicket screens for enhanced convenience and light control.

Durable Finishes: Available in Class I Clear Anodized (AA-M12-C22-A41), Class I Dark Bronze Anodized (2-step AA-M12-C22-A44), and Bone White Kynar (2-Coat 70% AAMA 2605).

Custom Solutions To Meet Your Needs

Custom arrangements and accessory integrations to meet aesthetic, functional, and performance requirements.

Capitol Aluminum Window Configuration Examples.png

Frame Finish
Color Selections

Custom finishes available upon request.

Technical Specifications
Window Model	325 SS
Frame Depth	3-1/4"
Typical Wall Thickness	Vent = .125" / Frame .125"
Insulated Panel Thickness Capacity	2-1/2" or 1"
Insulated Glass Thickness Capacity	1"
Air Infiltration Test	<0.01 cfm/ft² @ 6.24 psf (50 mph)
Water Resistance Test	No leakage @ 15.0 psf
Condensation Resistance Factor	59 (frame), 61 (glass) *varies
Thermal Performance (U-Value)	.28 - .44 *varies
AW Performance Class	PG100
Forced Entry Resistance	Grade 10
Sound Transmission	STC 46, OITC 37 *varies
Aluminum Alloy	6063-T5 or 6063-T6
Thermal Barrier Material	Poured-in-place two-part polyurethane
Sash Type	Overlap

*Note: U-Value and CR may vary based on glass make-up or infill type.

At Capitol Aluminum & Glass Corp., we are committed to delivering top-tier architectural products. The Capitol 325 SS Super Sentry Aluminum Window System reflects our dedication to quality, performance, and client satisfaction, providing a reliable and energy-efficient solution for your commercial window needs.

For detailed specifications, project-specific inquiries, or to request a quote, please contact us directly. Call (419) 483-7050 to speak with Project Specialist.
