500 WS (Wide Stile)
Aluminum Entrance Systems




















pdfDownload 500 WS Brochure
docDownload 500 WS Specifications

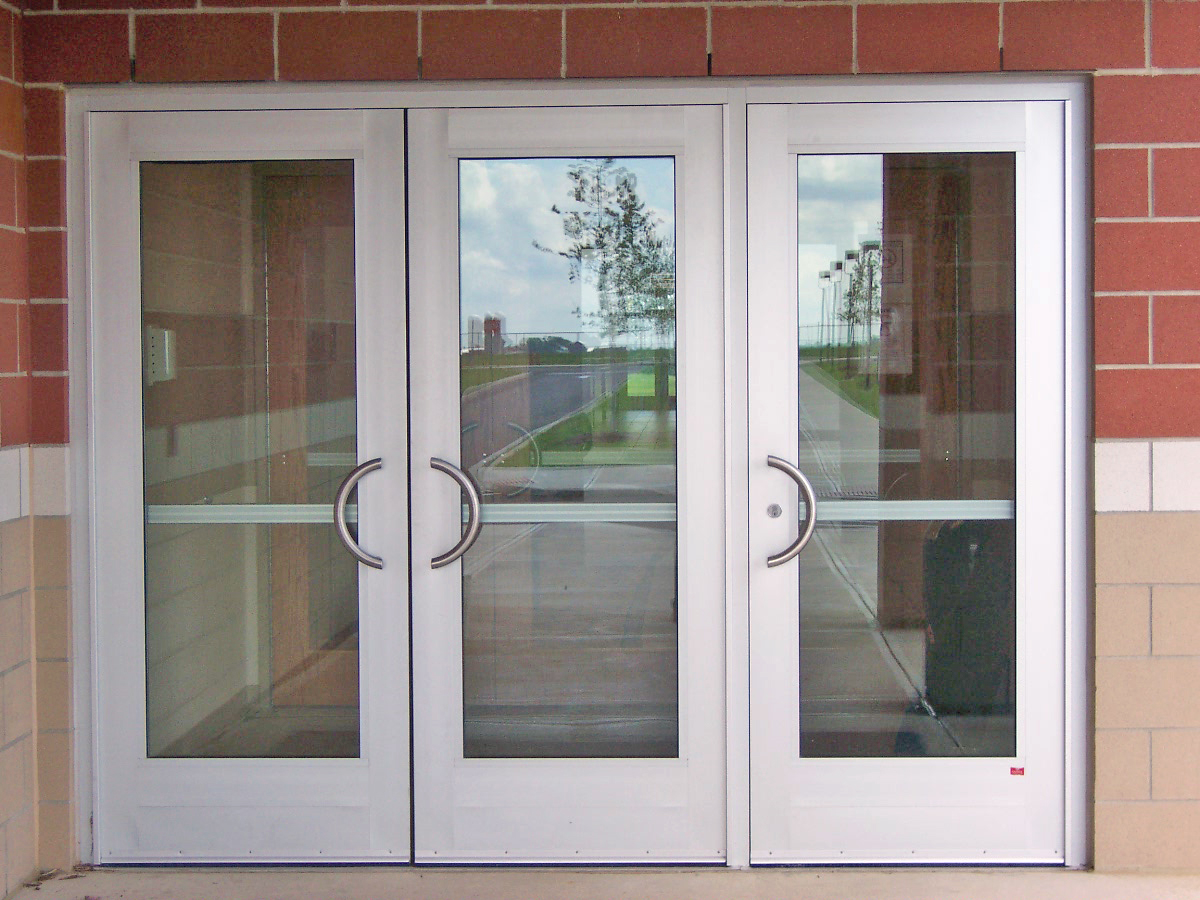

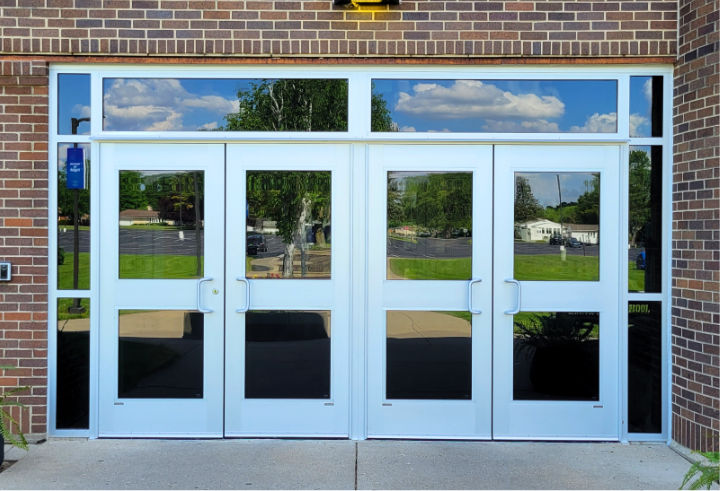

Capitol series 500 Wide Stile doors are available for heavy traffic commercial applications, such as schools and public institutions.

Features and Benefits

  • Stock size or custom built to accommodate existing or new construction openings
  • Insert Frame available for renovation projects
  • Standard exterior non-removable glass stop
  • Accommodates most commercial hardware
  • Available in a variety of anodized or painted finishes
  • Security design of snap in glass stops provide for 1/4” to 1” glazing thicknesses
  • Adaptable to meet local building codes and ADA requirements
  • Limited lifetime warranty
  • Rugged tie-rod corner construction (welded upon request)




Specs

Model Overall Depth Applications Available Configurations Glazing Infill Air Structural (Uniform Load) Muntins

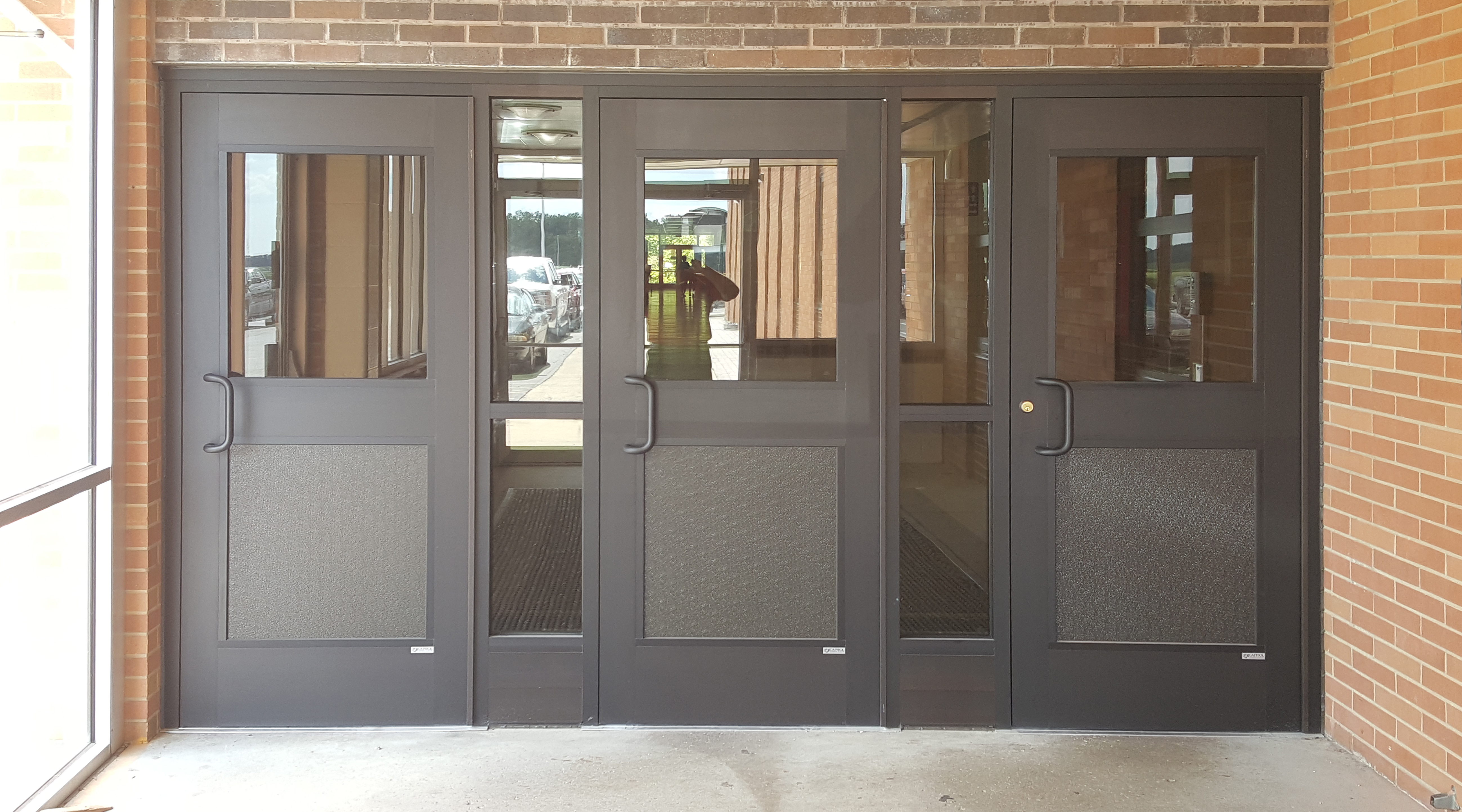

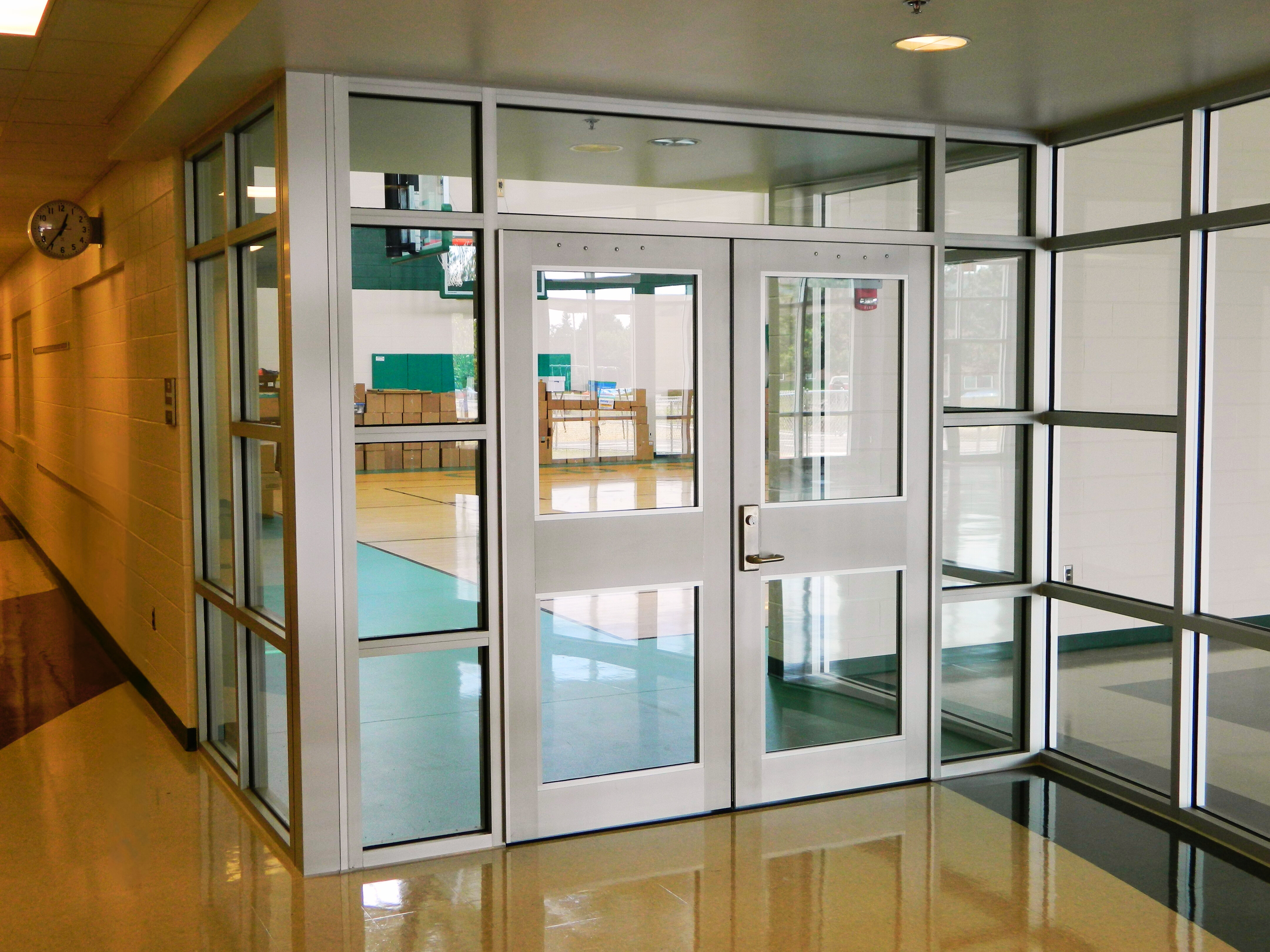

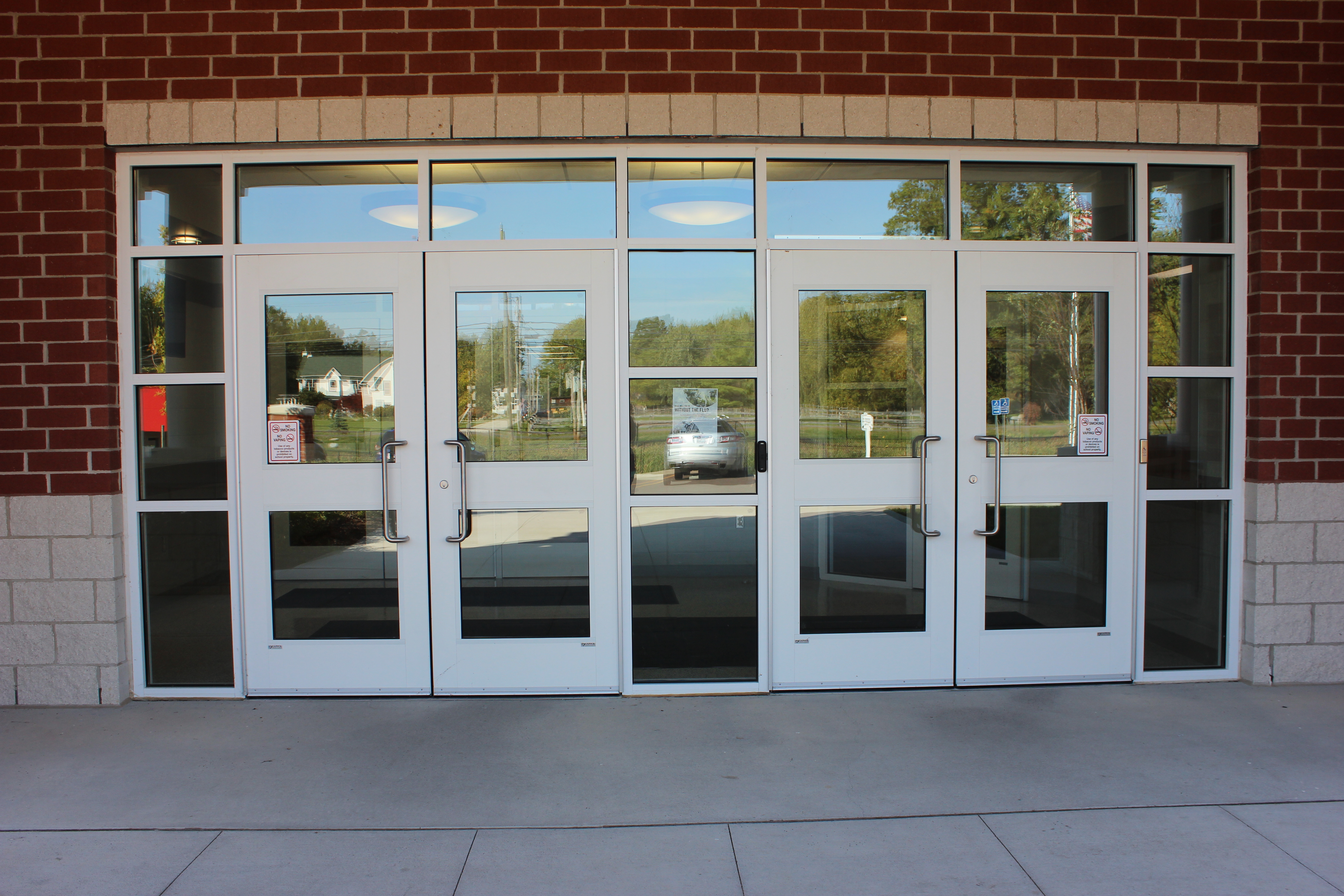

500 WS 1-3/4" Wide Stile Swing Commercial applications with heavy traffic use: educational and public buildings Full Glass, Two-Lite, Three-Lite, Half Panel, Glass, Custom 1/4” or 1” =.27 cfm/ft² DP
= ±43.30 psf

STP
= ±65.00 psf
YES

*Varies upon glass make-up or infill type

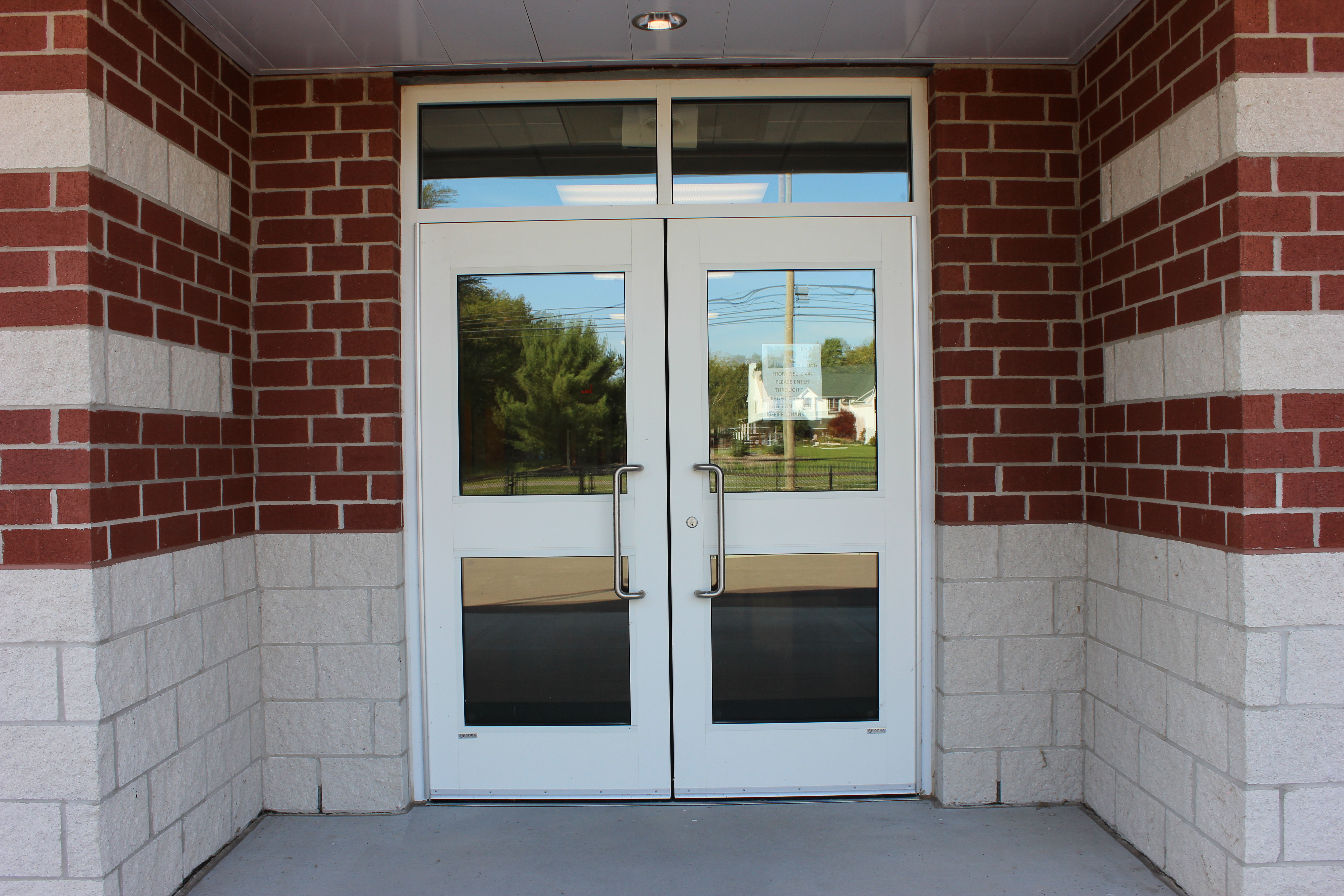

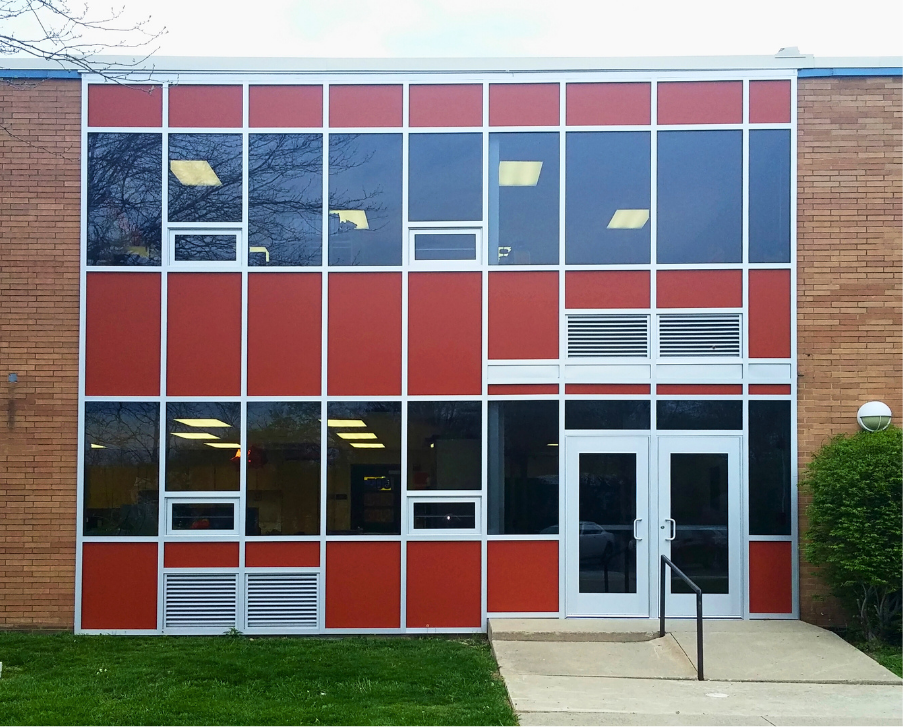

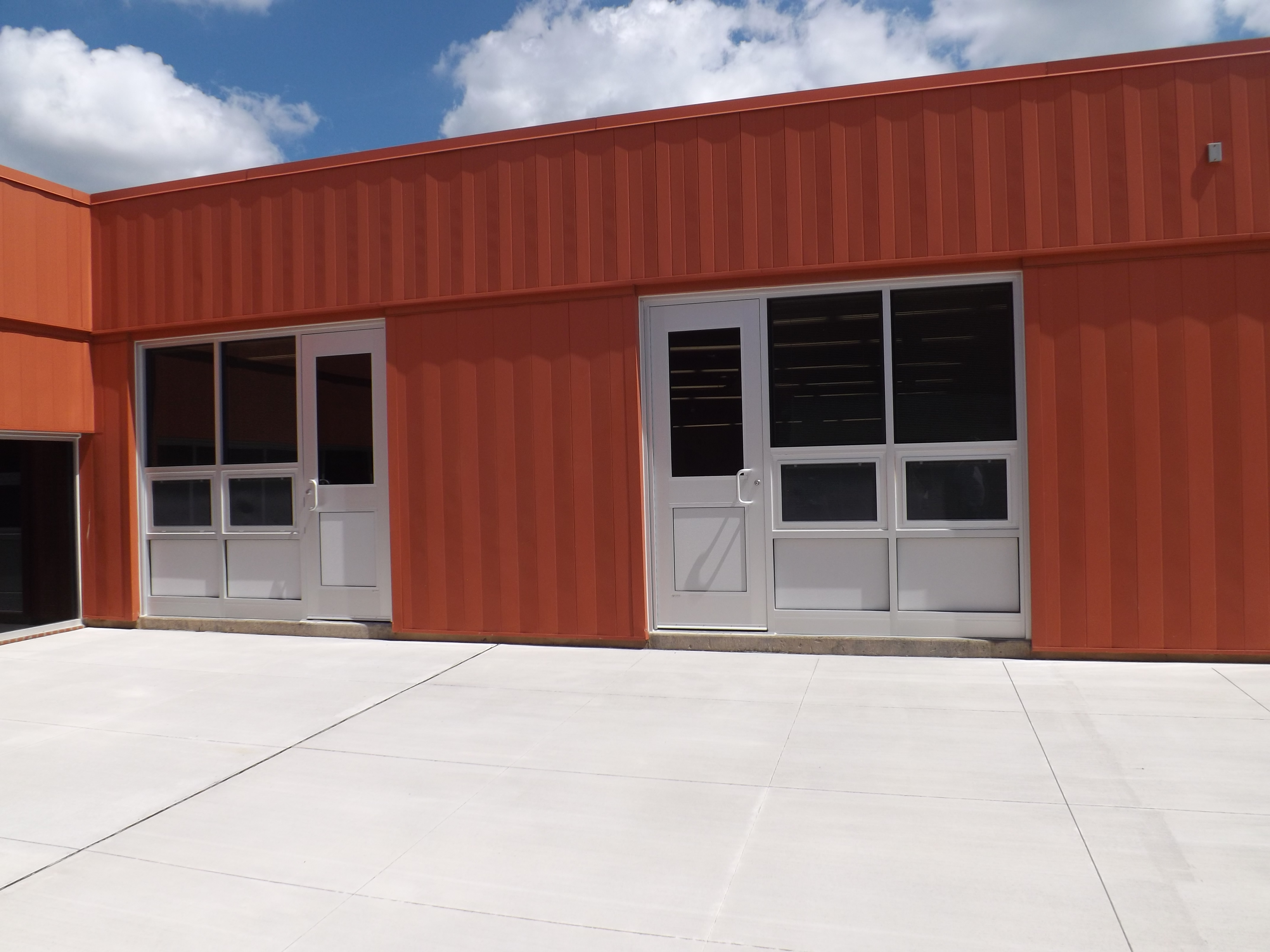

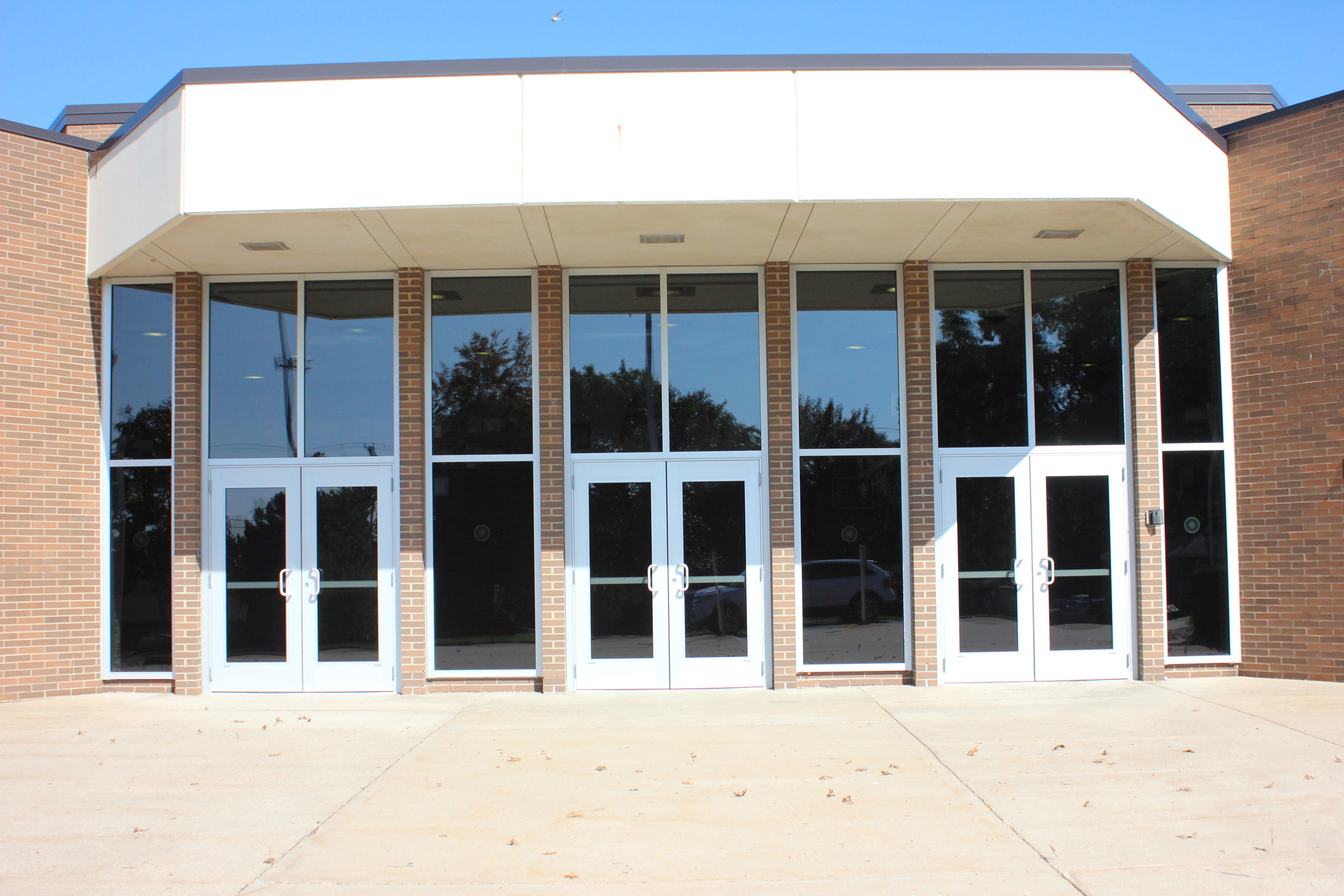

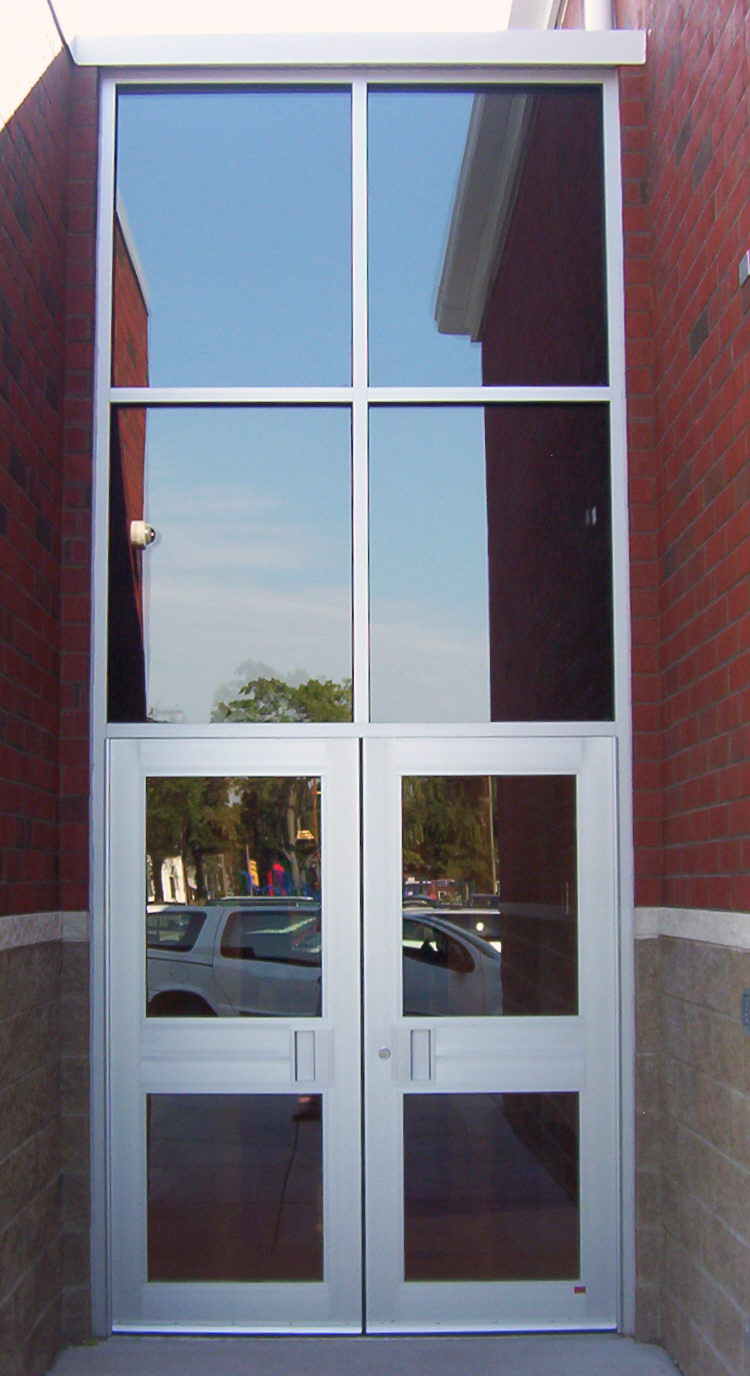

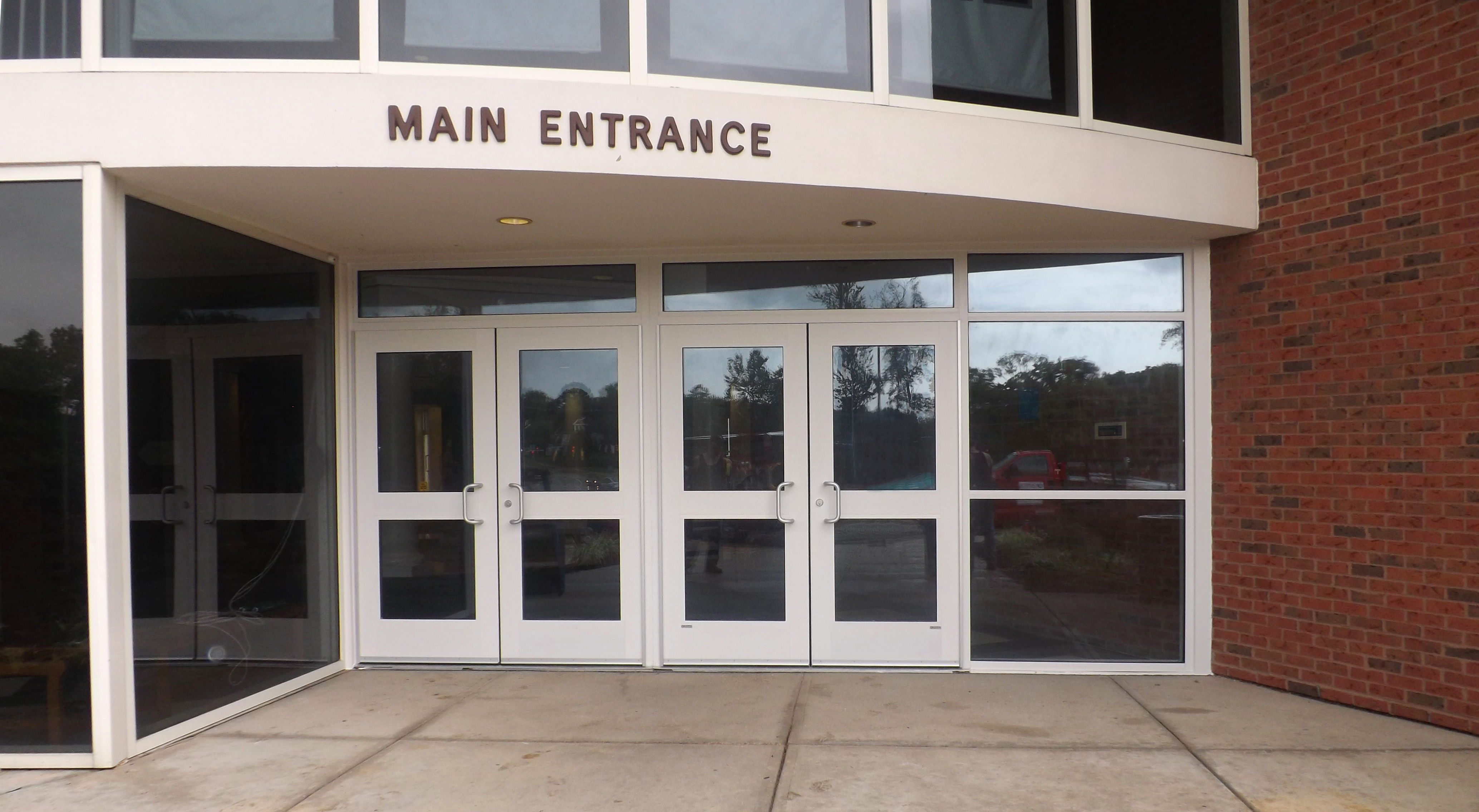

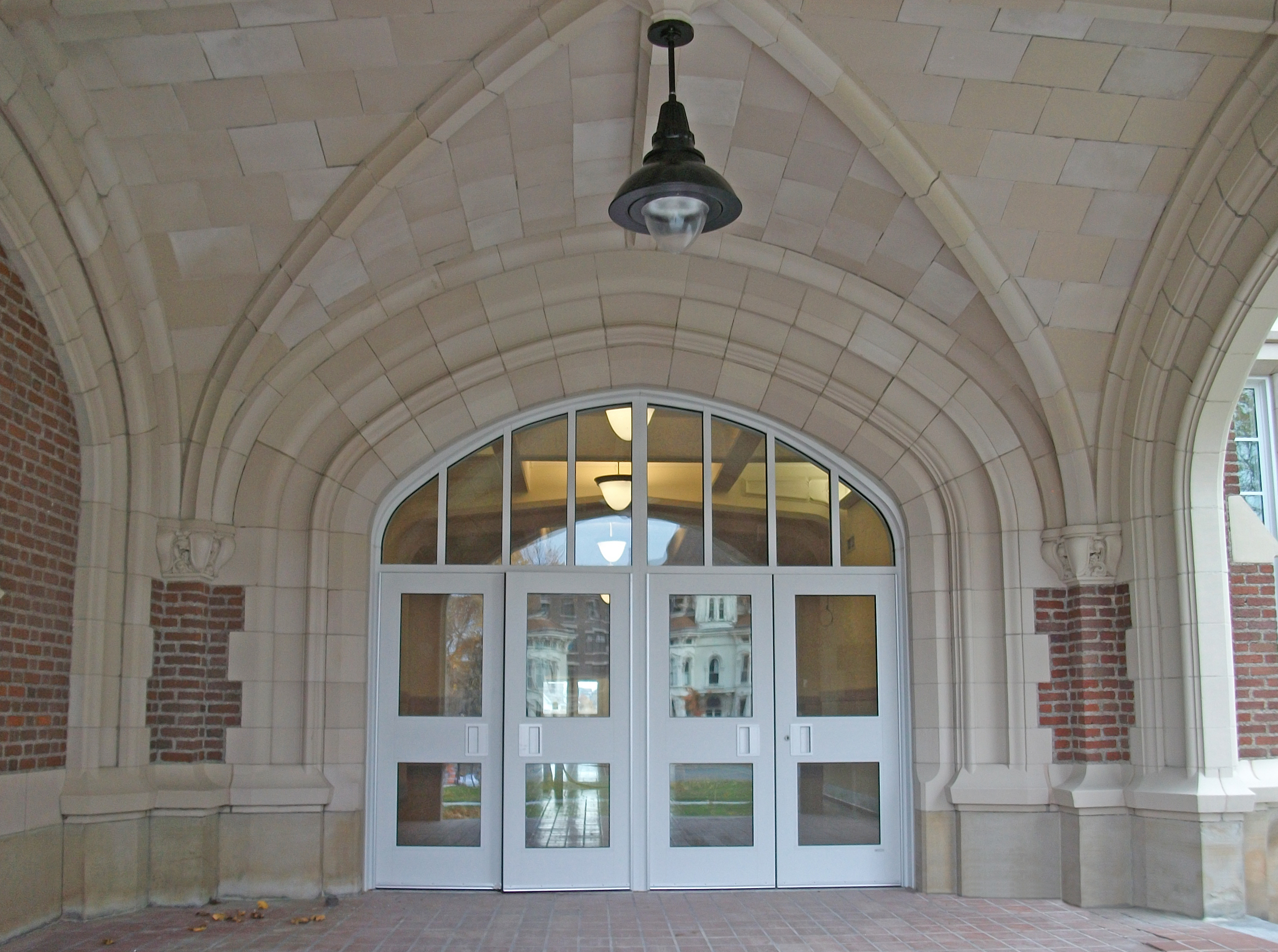

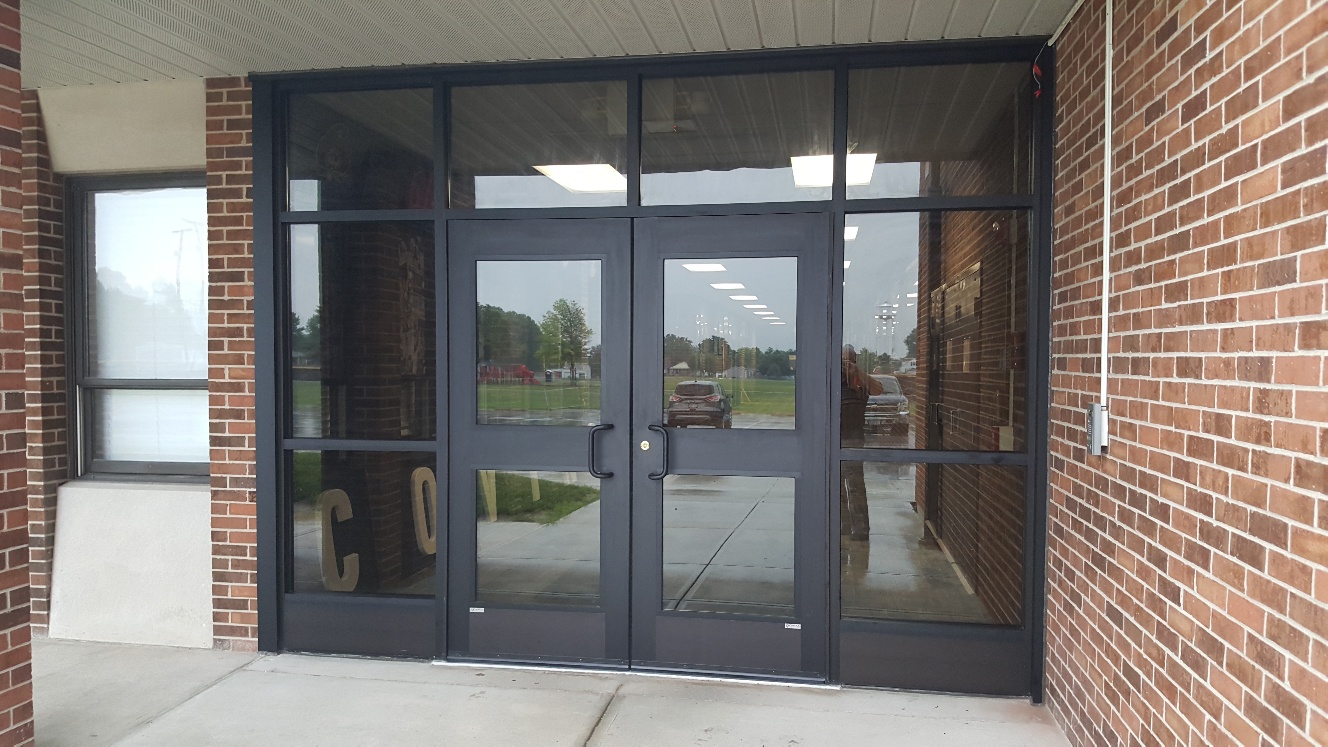

500ws-1.jpg 500ws-2.jpg 500ws-3.jpg 500ws-4.jpg 500ws-5.jpg 500ws-6.jpg 500ws-7.jpg 500ws-8.jpg 500ws-9.jpg
