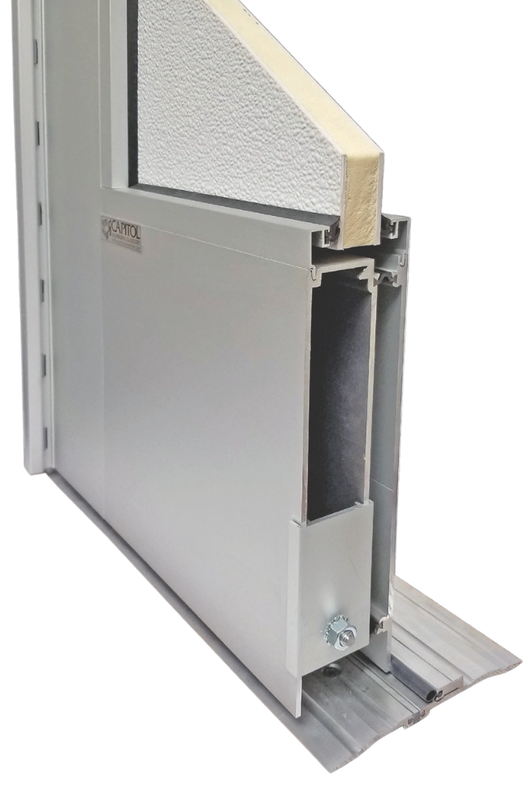

600XT (Thermal)
| Model | Overall Depth | Applications | Available Configurations | Glazing Infill | Air | MStructural (Uniform Load) | Muntins |
| 600XT | 2-3/8" Wide Stile Swing | Commercial applications with heavy traffic use: educational and public buildings | Full Glass, Two-Lite, Three-Lite, Half Panel, Glass, Custom | 1” or 1-1/16" |
=.16 cfm/ft² | DP = ±80.20 psf STP = ±120.30 psf |
YES |

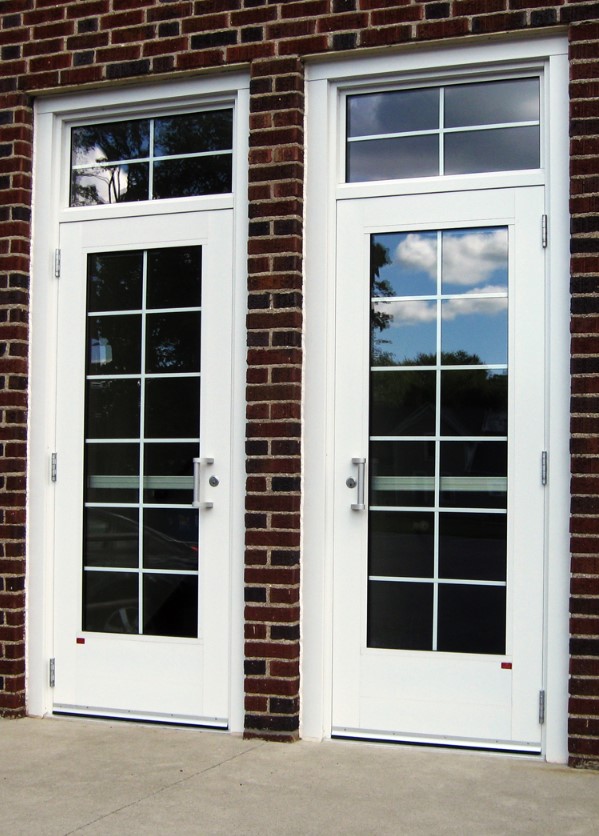

500 WS (Wide Stile)
| Model | Overall Depth | Applications | Available Configurations | Glazing Infill | Air | MStructural (Uniform Load) | Muntins |
| 500 WS | 1-3/4" Wide Stile Swing | Commercial applications with heavy traffic use: educational and public buildings | Full Glass, Two-Lite, Three-Lite, Half Panel, Glass, Custom | 1/4” or 1” | =.27 cfm/ft² | DP = ±43.30 psf STP = ±65.00 psf |
YES |
4900
FRP
| Model | Overall Depth | Applications | Available Configurations | Glazing Infill | Air | Structural (Uniform Load) | Muntins |
| 4900 FRP | 1-3/4" Fiberglass Reinforced Polyester | Impact-resistant for high humidity and abusive environments: educational, industrial, waste water treatment, and public buildings | Full Panel, Two-Lite, Three-Lite, Half Panel & Glass, Vision-Lite, Half Strip-Lite, Custom | 1/4” or 1” | =.23 cfm/ft² | DP = ±80.20 psf STP = ±120.30 psf |
YES |
| Model | Overall Depth | Applications | Available Configurations | Glazing Infill | Air | MStructural (Uniform Load) | Muntins |

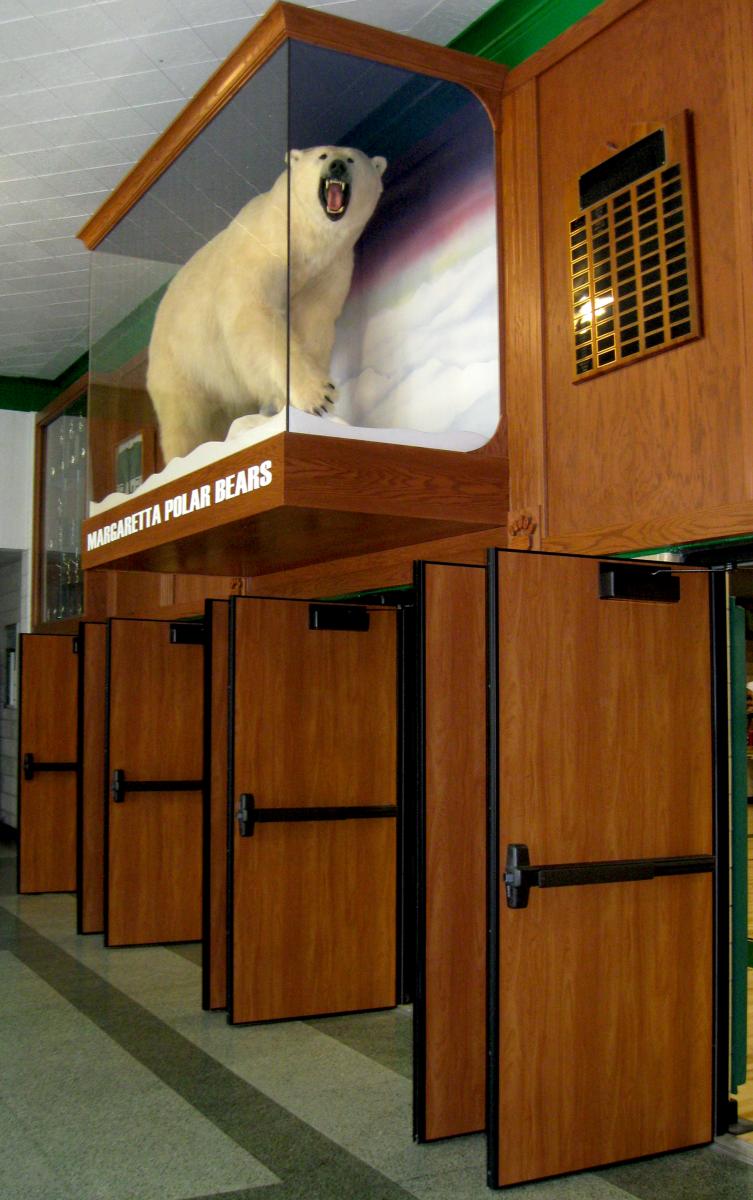

| 4900 LWG | 1-3/4" Laminated Woodgrain Interior | Commercial interior applications with moderate traffic use: offices, banks, libraries, educational, religious, healthcare, retail, and government buildings | Full Panel, Two-Lite, Three-Lite, Half Panel & Glass, Vision-Lite, Half Strip-Lite, Custom | 1/4” or 1” | NA | NA | YES |
*Varies upon glass make-up or infill type

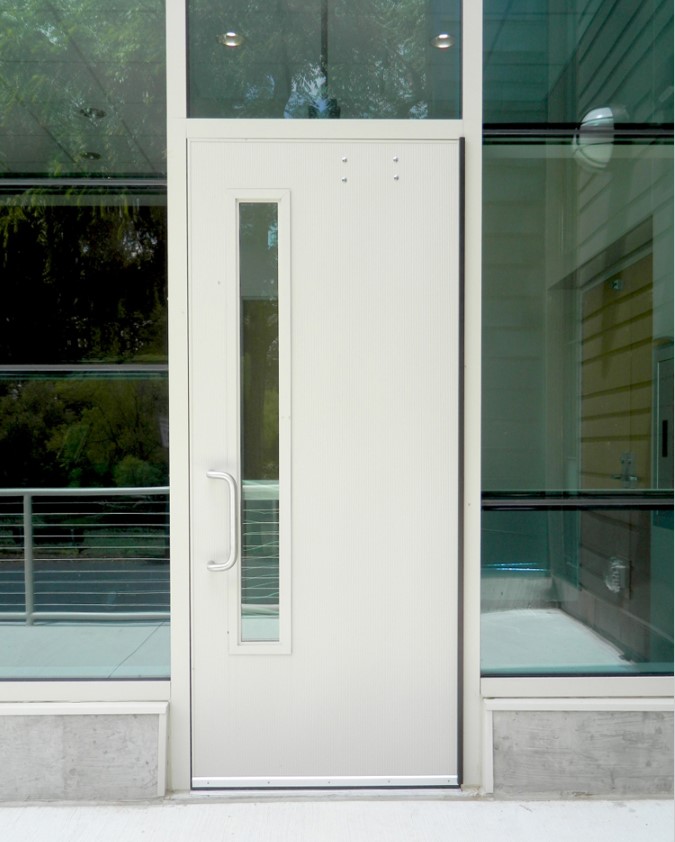

5000 FAP
| Model | Overall Depth | Applications | Available Configurations | Glazing Infill | Air | MStructural (Uniform Load) | Muntins |
| 5000 FAP | 1-3/4" Flush Aluminum Panel | Aesthetically pleasing & rust-free for high-security environments: educational, industrial, healthcare, municipal, and government buildings | Full Panel, Two-Lite, Three-Lite, Half Panel & Glass, Vision-Lite, Half Strip-Lite, Custom | 1/4” or 1” | =.15 cfm/ft² | DP = ±80.20 psf STP = ±120.30 psf |
YES |
