600XT Thermal Wide Stile Aluminum Entrance Systems

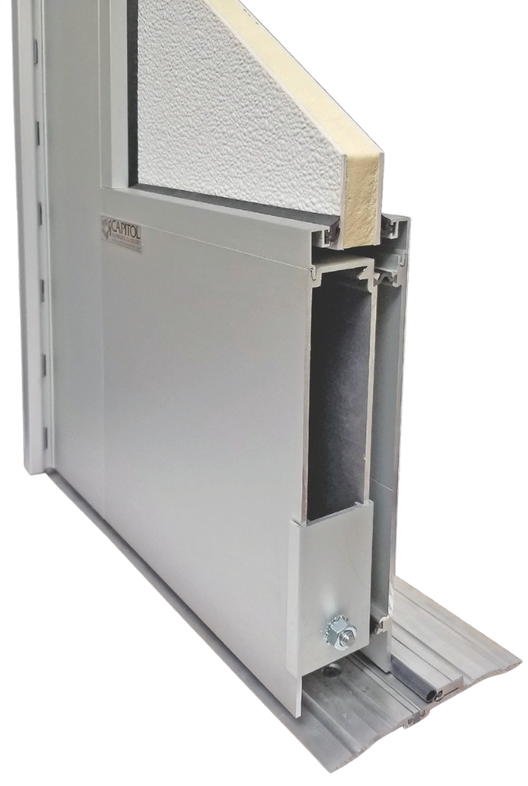

600XT Website Cutaway.jpg



















pdfDownload 600XT Brochure
docDownload 600XT Specifications

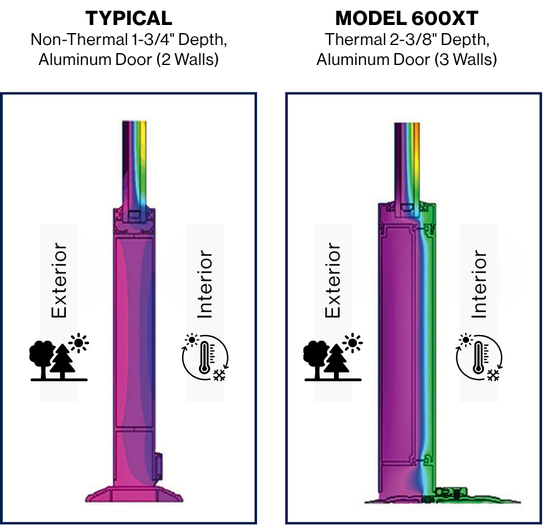

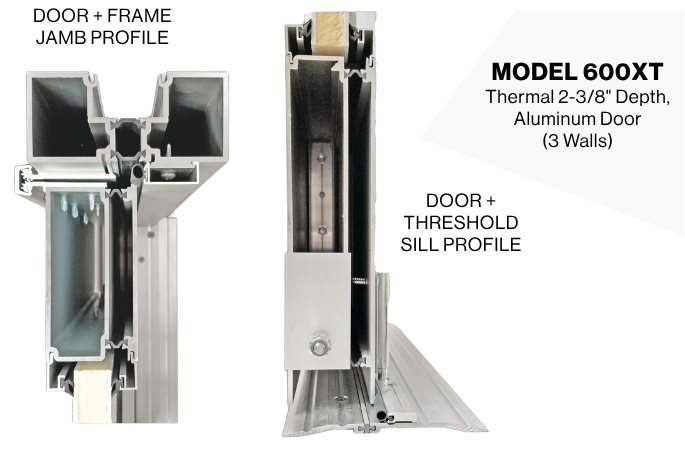

Capitol 600XT has a 2-3/8" overall door thickness with 5" wide stile members. Enjoy superior performance with a 9/16" (14mm) thermally broken polyamide strut that separates hot and cold temperature transfer, improving its thermal u-value. These doors are manufactured and equipped for a wide array of commercial applications with light to heavy traffic use, such as banks, offices, stores, schools and public institutions. Couple with Capitol's storefront or curtain wall systems to enhance any building's design and aesthetics.

Features and Benefits

  • Stock size or custom built to accommodate existing or new construction openings
  • Product design incorporates 9/16" (14mm) thermal strut for improved comfort
  • Standard 6-1/2" head rail and 10" bottom rail with optional 6-1/2" mid rail
  • Center set glazing accepts and 1" and 1-1/6" infill
  • Adaptable to meet local building codes and ADA requirements
  • Factory installed door hardware
  • Open for infill, installed by others (optional)
  • Integrate with Capitol thermal storefront or curtain wall system
  • Limited lifetime warranty




Specs

Series Overall Depth Applications Available Configurations Glazing Infill Air Structural (Uniform Load) Muntins
600XT 2-3/8" Wide Stile Swing Commercial applications with heavy traffic use: educational and public buildings Full Glass, Two-Lite, Three-Lite, Half Panel, Glass, Custom

1” IG or
1-1/16"
Lami IG

=.16 cfm/ft² DP
= ±80.20 psf

STP
= ±120.30 psf
YES

*Varies upon glass make-up or infill type
