Screens

Tailored Ventilation & Protection

Our expertly crafted screens offer reliable insect protection while enhancing natural ventilation for window systems, guaranteeing comfort without compromise.

We produce two main types of screens: sliding wicket and hopper.

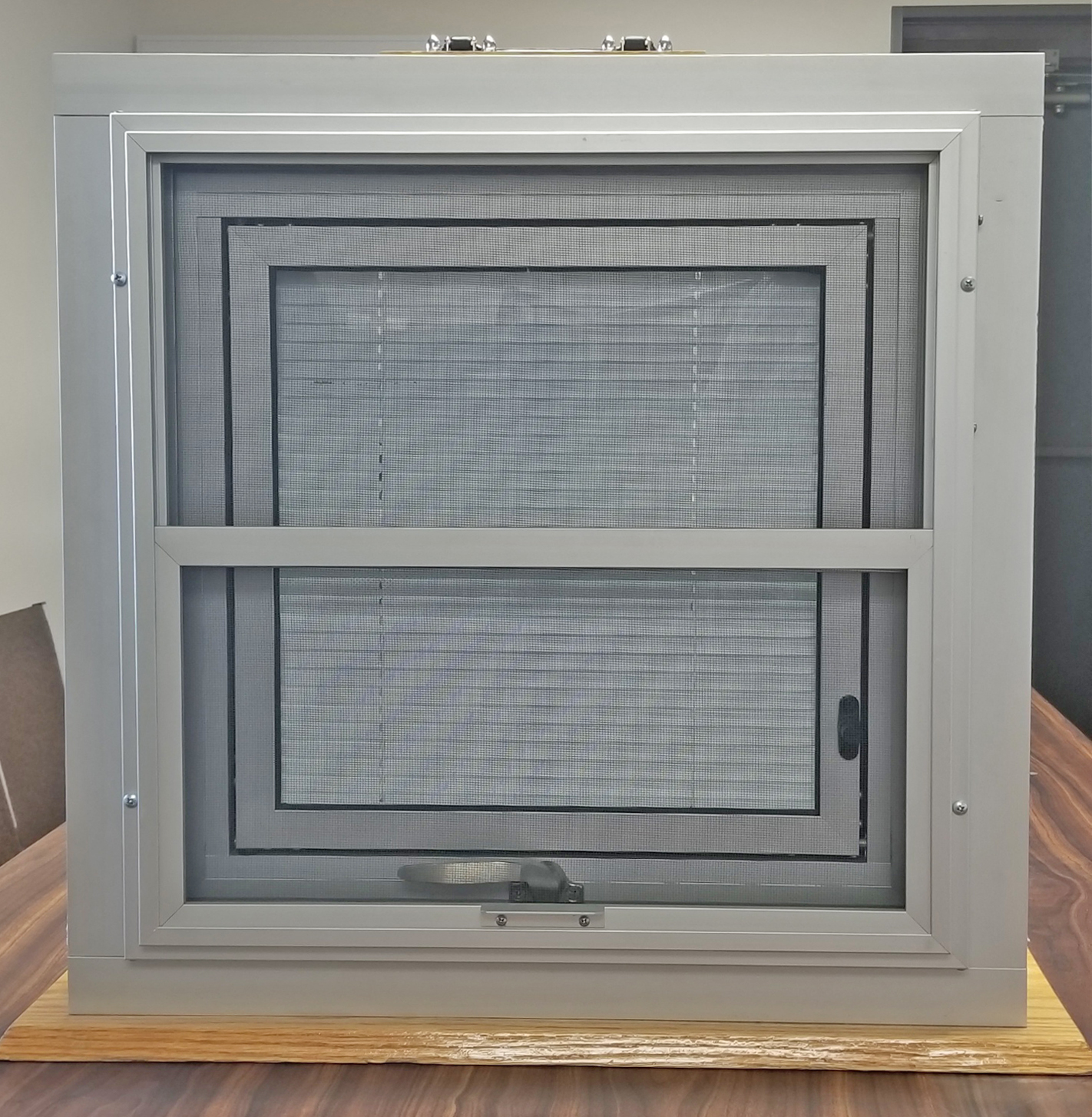

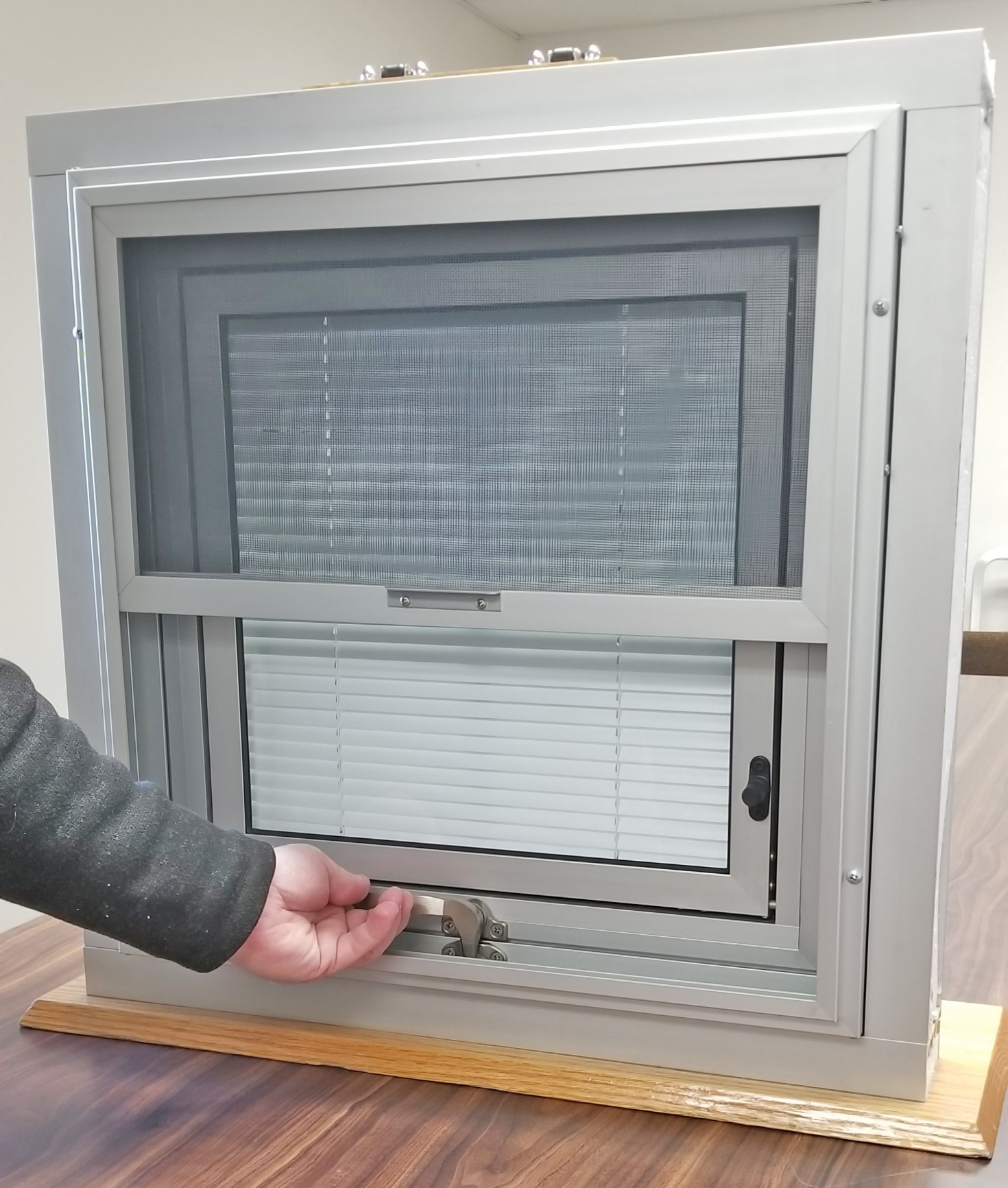

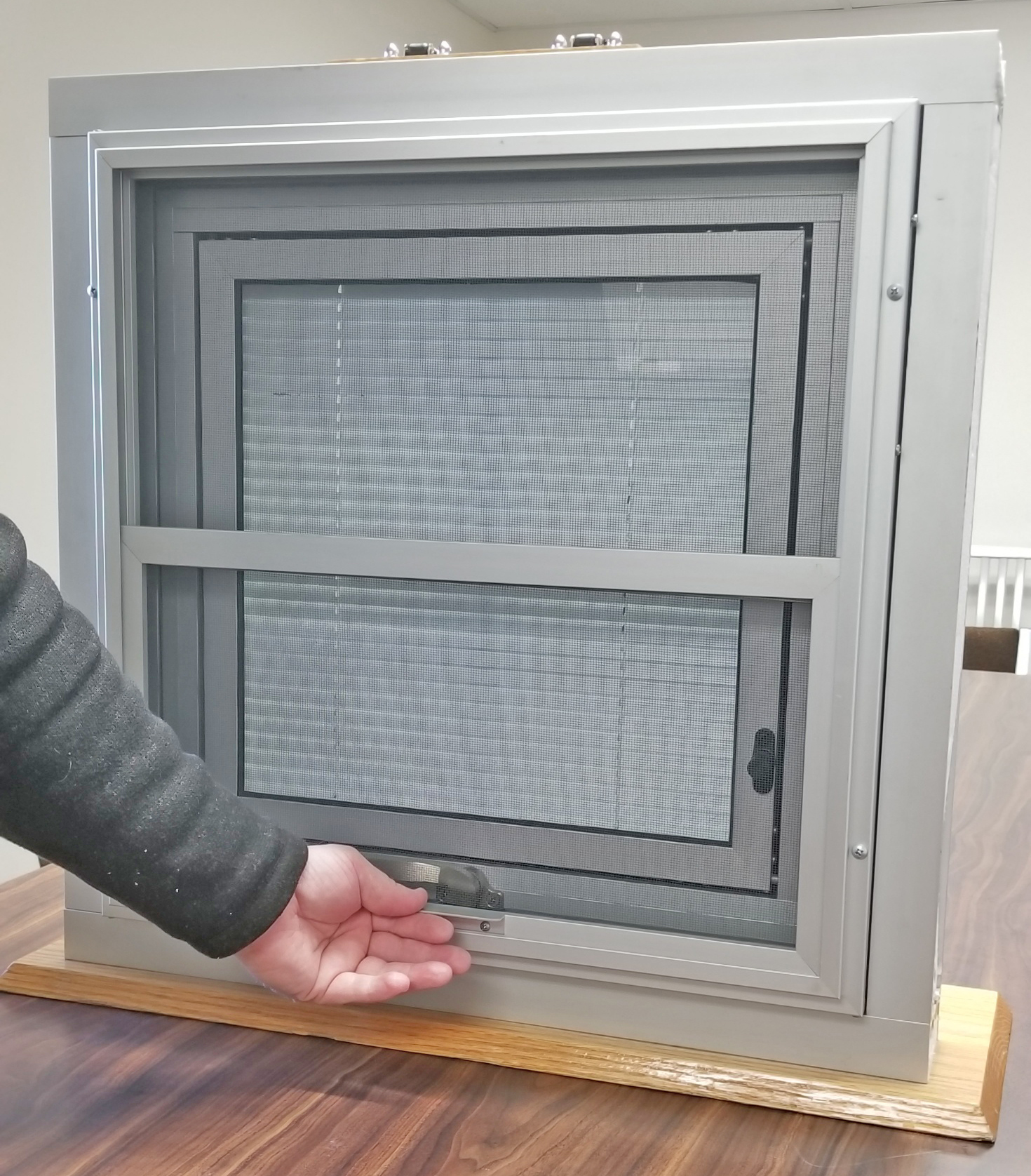

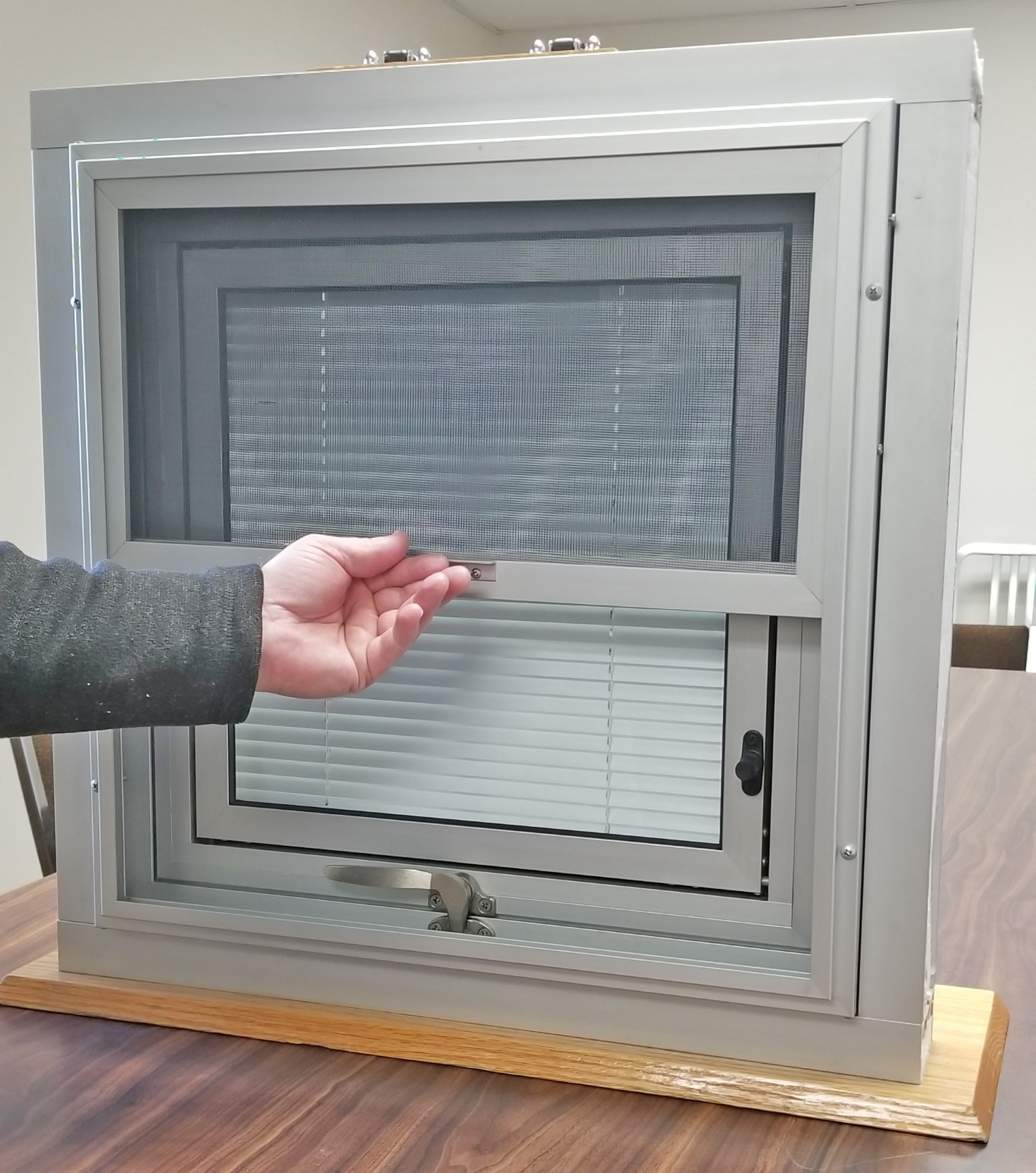

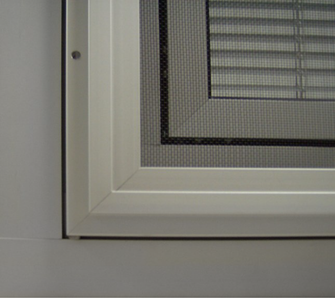

Sliding Wicket Screen:

• Designed for project-out vent windows.
• Screw-applied on the interior side of the window frame.
• Removable by maintenance crew for convenience.
• This is the most typical screen manufactured by Capitol.
• Standard mesh colors are charcoal, black, and natural brite.

[ Tap or click an image to enlarge ]

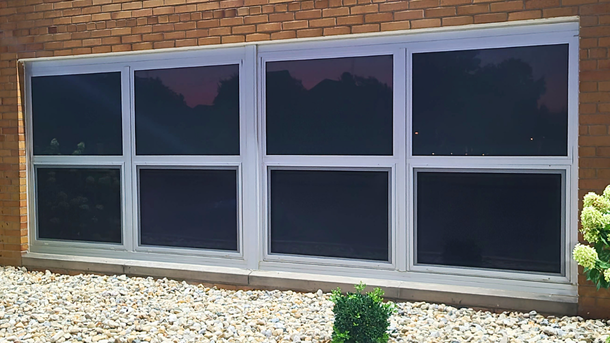

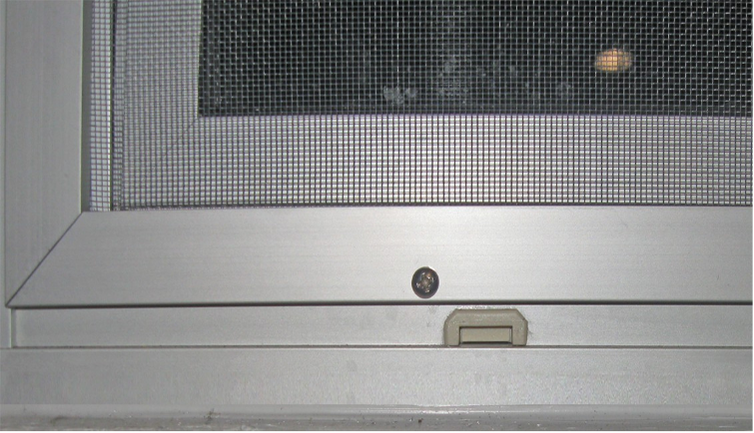

Hopper Screen:

• Designed for project-in hopper windows.
• Screw-applied on the exterior side of the window frame.
• Removable by maintenance crew for convenience.
• Standard mesh colors are charcoal, black, and natural brite.

[ Tap or click an image to enlarge ]

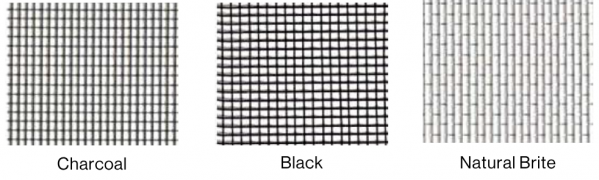

Screen Mesh Standard Color Selections:

Screen Mesh Material Specifications:

• 18 x 16 mesh
• 0.011-inch diameter, coated aluminum wire
• Complies with FS RR-W-365, Type VII
