5000 FAP
(Flush Aluminum Panel)

5000 FAP5000 FAP
(Flush Aluminum Panel) Entrance Systems







Capitol 5000 Flush Aluminum Panel door leaves are manufactured with a durable foam core and sturdy aluminum frame designed to withstand high traffic conditions. Flush aluminum doors utilize double astragal weather-stripping to resist water and air infiltration.

Features

  • Single or multiple ¼” or 1” pre-glazed or open vision-lite arrangements
  • Double weather-stripping to resist water and air infiltration
  • .125 Hardboard backers make the FAP door impact resistant, reducing dents

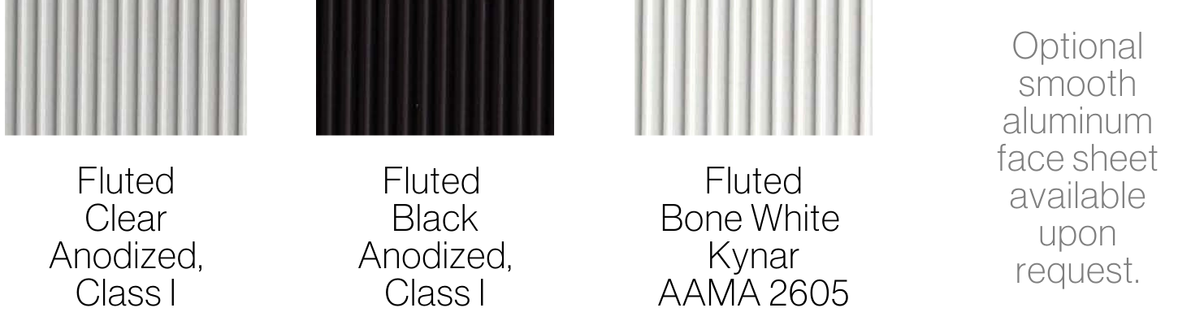

  • .040 fluted aluminum sheet or .063 smooth aluminum sheet (5005 Alloy)
  • Class I (6.0 lb/ft3) polyisocyanurate foam insulated core (CFC/HCFC - Free)
  • Accommodates various commercial hardware, louvers, security grates, and vandal screens
  • Available in anodized and painted finishes
  • Internal hardware reinforcement
  • Fully extruded 4 1/2” internal aluminum tubular frame

Specs

Series Overall Depth Applications Available Configurations Glazing Infill Air MStructural (Uniform Load) Muntins

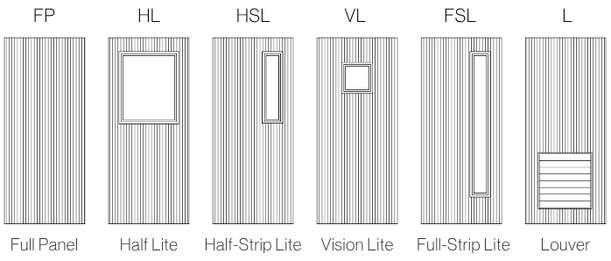

5000 FAP 1-3/4" Flush Aluminum Panel Aesthetically pleasing & rust-free for high-security environments: educational, industrial, healthcare, municipal, and government buildings Full Panel, Two-Lite, Three-Lite, Half Panel & Glass, Vision-Lite, Half Strip-Lite, Custom 1/4” or 1” =.15 cfm/ft² DP
= ±80.20 psf

STP
= ±120.30 psf
YES

pdfDownload 5000 FAP Brochure

file_doc.pngDownload 5000 FAP Specifications

*Varies upon glass make-up or infill type

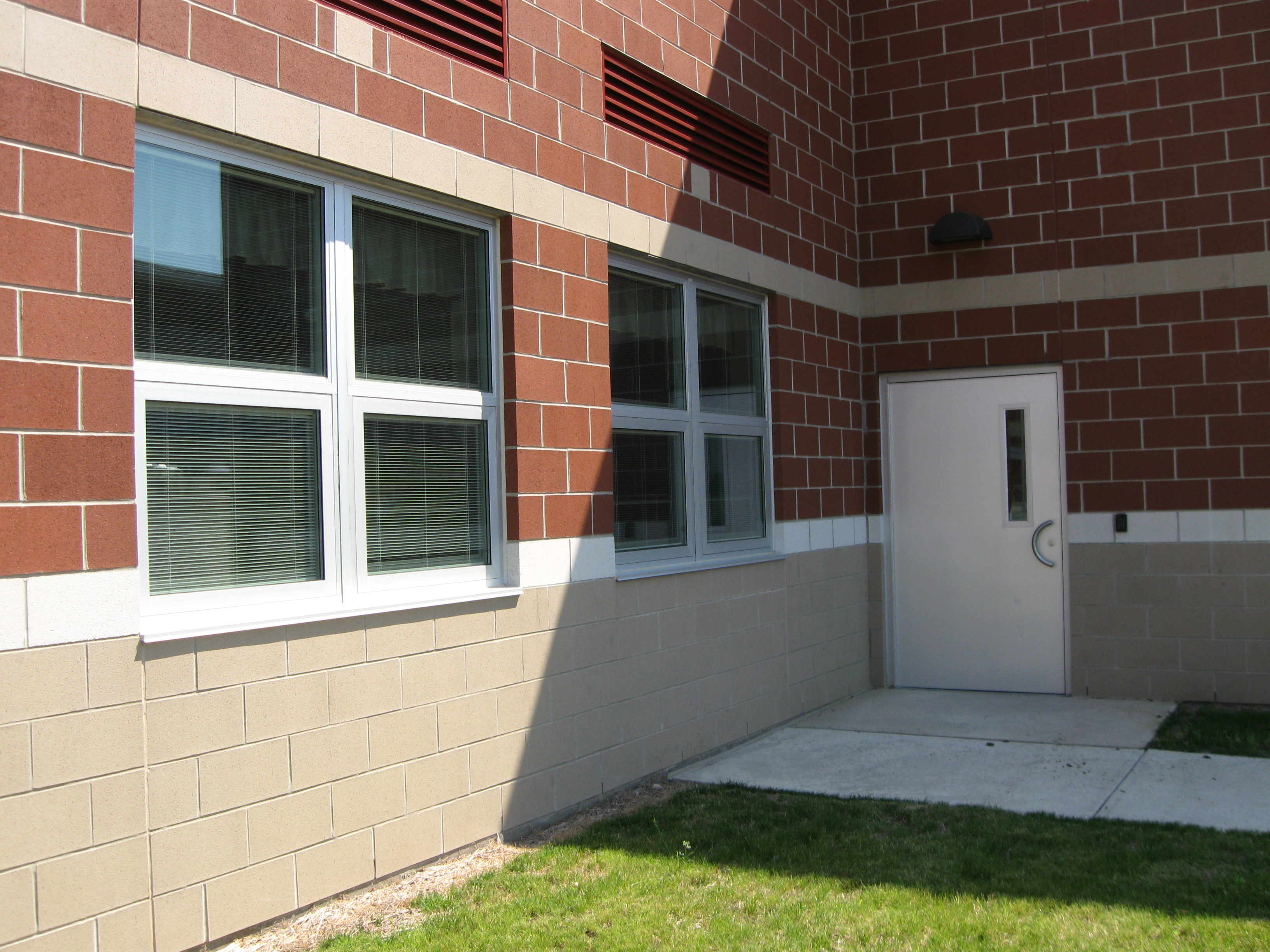

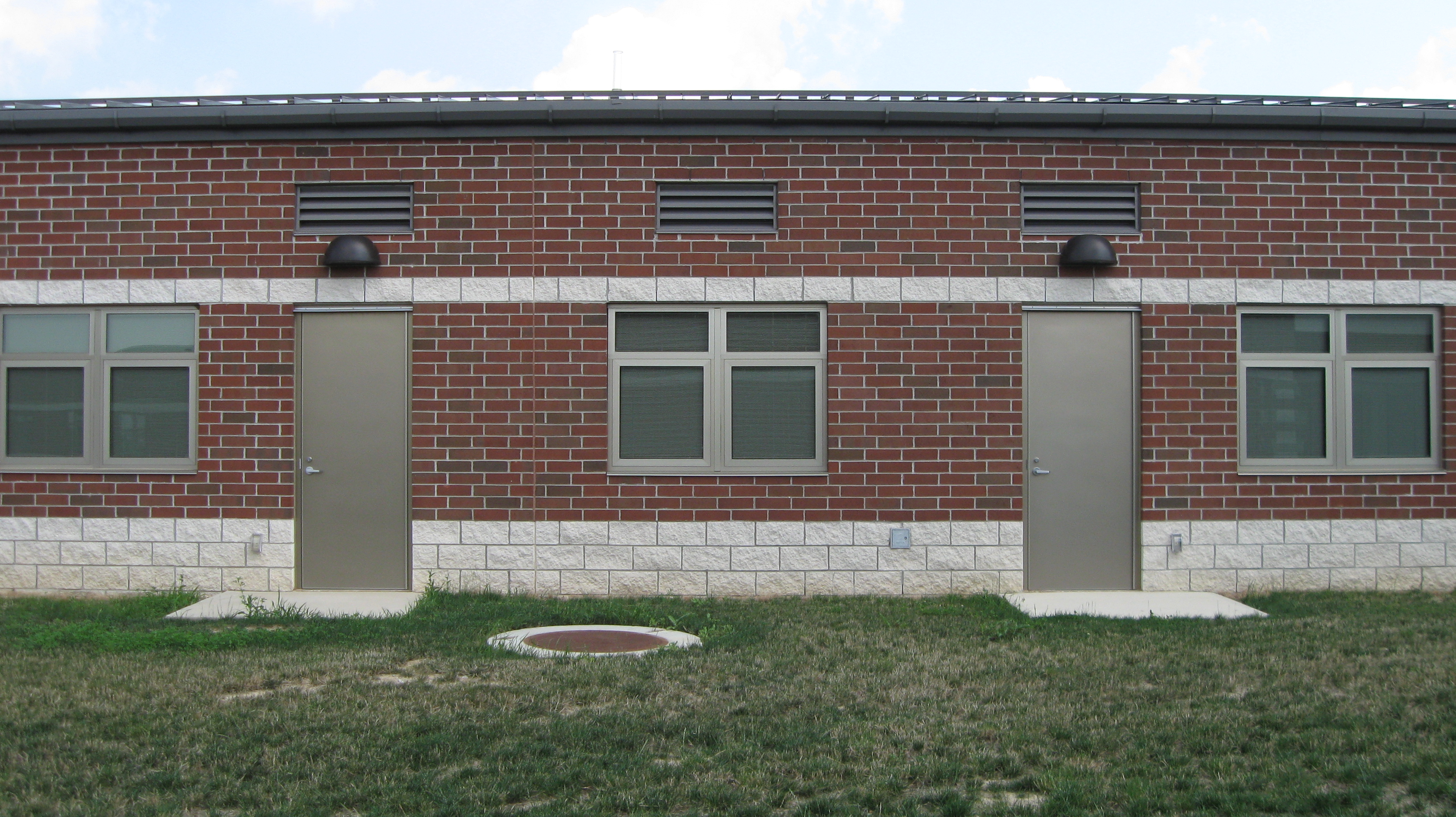

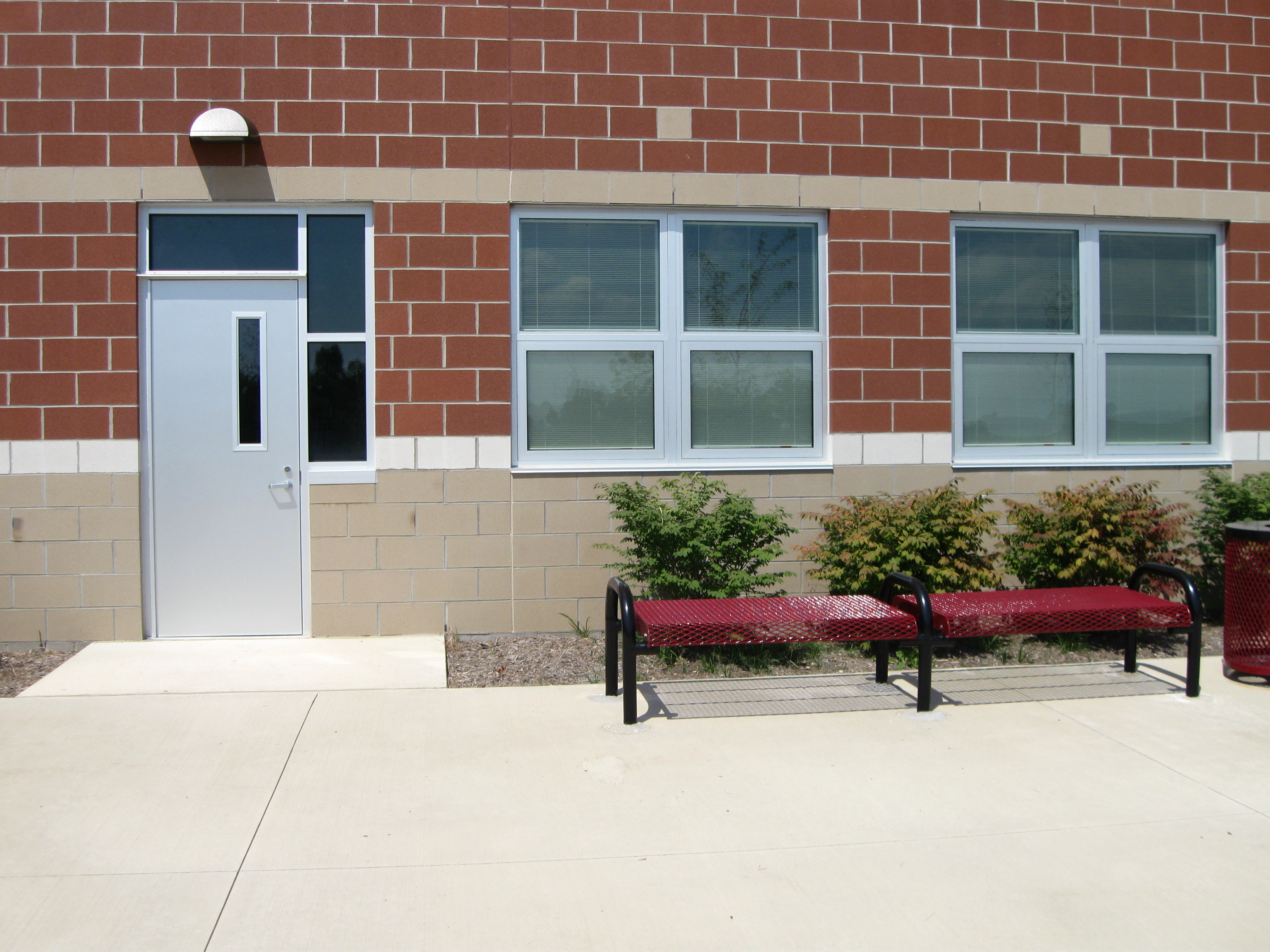

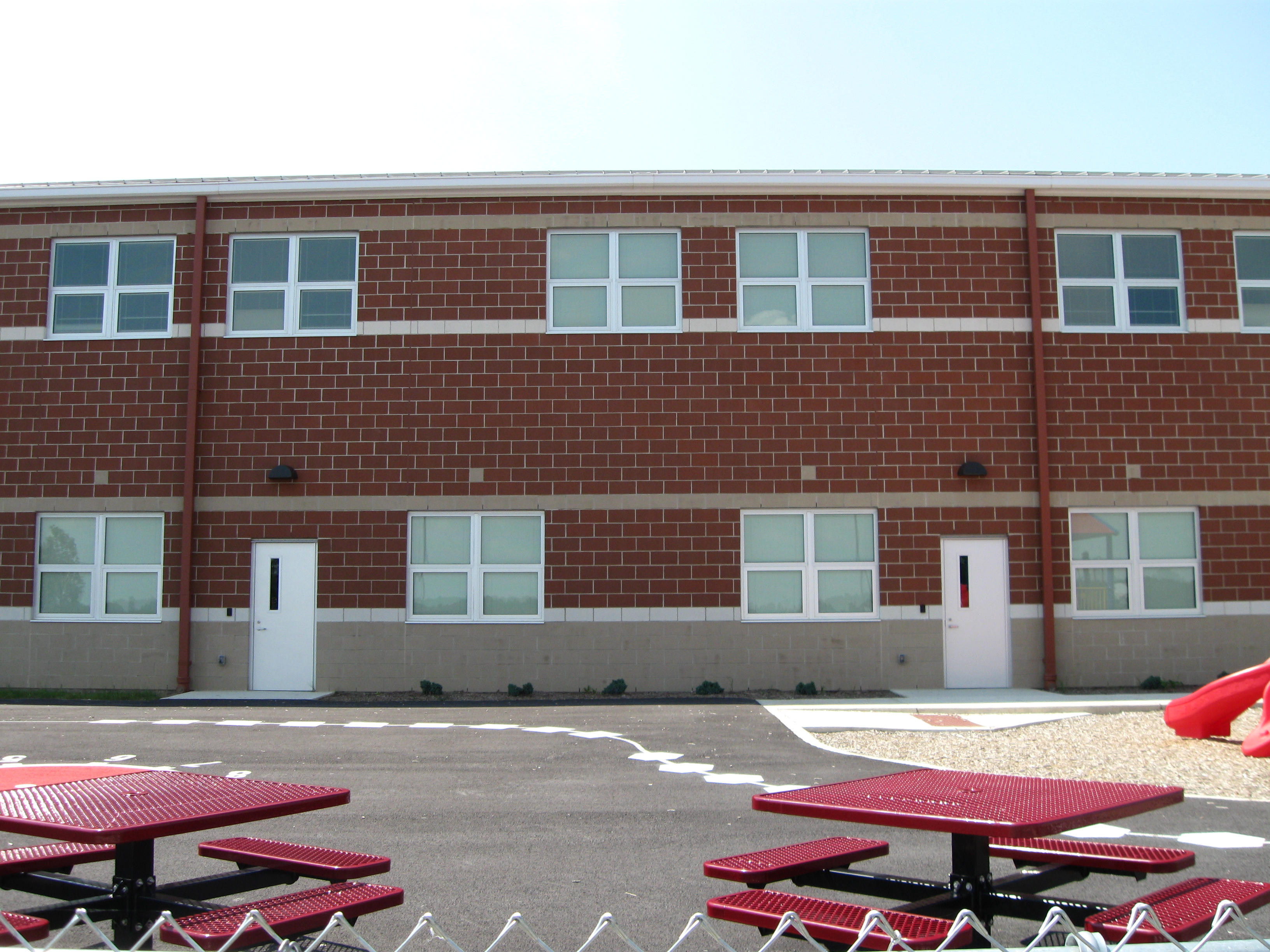

5000fap-2.jpg 5000fap-1.jpg 5000fap-3.jpg 5000fap-4.jpg 5000fap-5.jpg 5000fap-6.jpg
