4900 FRP (Fiberglass Reinforced Polyester)

4900 frp4900 FRP (Fiberglass Reinforced Polyester) Entrance Systems

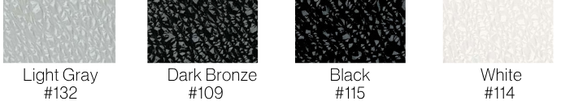

Capitol durable FRP doors absorb broad impact shock, reducing dents, which leads to longer door life. When selecting a Capitol FRP door, choose from standard colors, dark bronze, dark gray, or light gray. Other colors can be special ordered for specific project requirements. The 4900 FRP door system is a great long-lasting pre-finished alternative to hollow metal and wood doors.

Features

  • Single or multiple 1/4” or 1” pre-glazed or open vision-lite arrangements and sizes available
  • Double weather-stripping to resist water and air infiltration
  • Class I (6.0 lb/ft3) polyisocyanurate foam insulated core (CFC/HCFC - Free)
  • Accommodates various commercial hardware, louvers, security grates, and vandal screens
  • Internal hardware reinforcement
  • Fully extruded 4 1/2" internal aluminum tubular frame
  • Stain/Chemical resistant FRP sheet
  • .120 Class A pebble grain face sheets
  • Multiple frame sizes/configuration

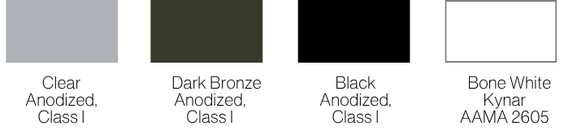

  • Custom color paint option available

Specs

Series Overall Depth Applications Available Configurations Glazing Infill Air Structural (Uniform Load) Muntins

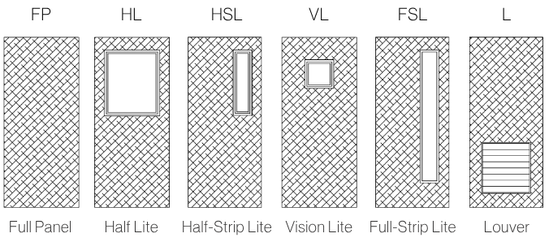

4900 FRP 1-3/4" Fiberglass Reinforced Polyester Impact-resistant for high humidity and abusive environments: educational, industrial, waste water treatment, and public buildings Full Panel, Two-Lite, Three-Lite, Half Panel & Glass, Vision-Lite, Half Strip-Lite, Custom 1/4” or 1” =.23 cfm/ft² DP
= ±80.20 psf

STP
= ±120.30 psf
YES

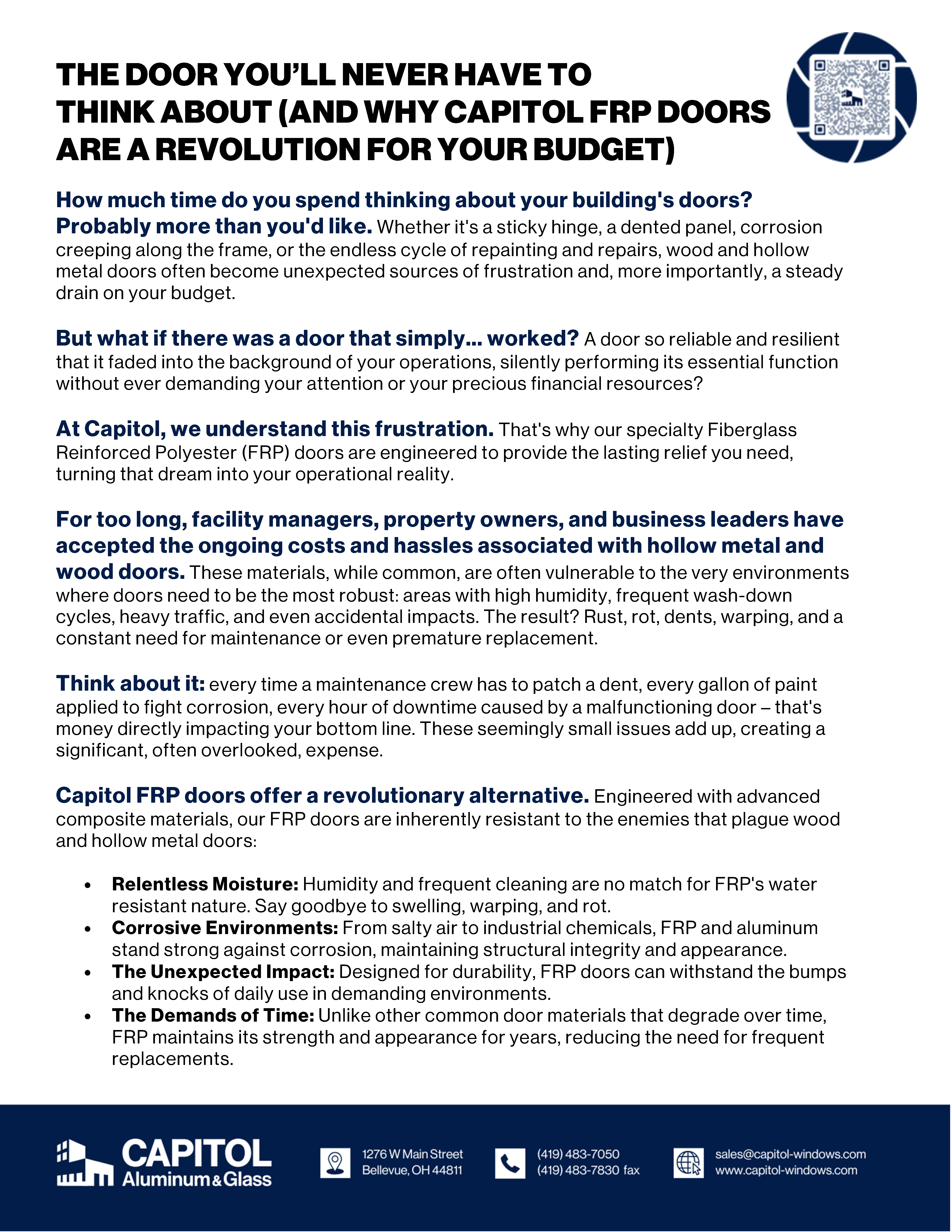

pdfDownload 4900 FRP Brochure

docDownload 4900 Specifications

*Varies upon glass make-up or infill type

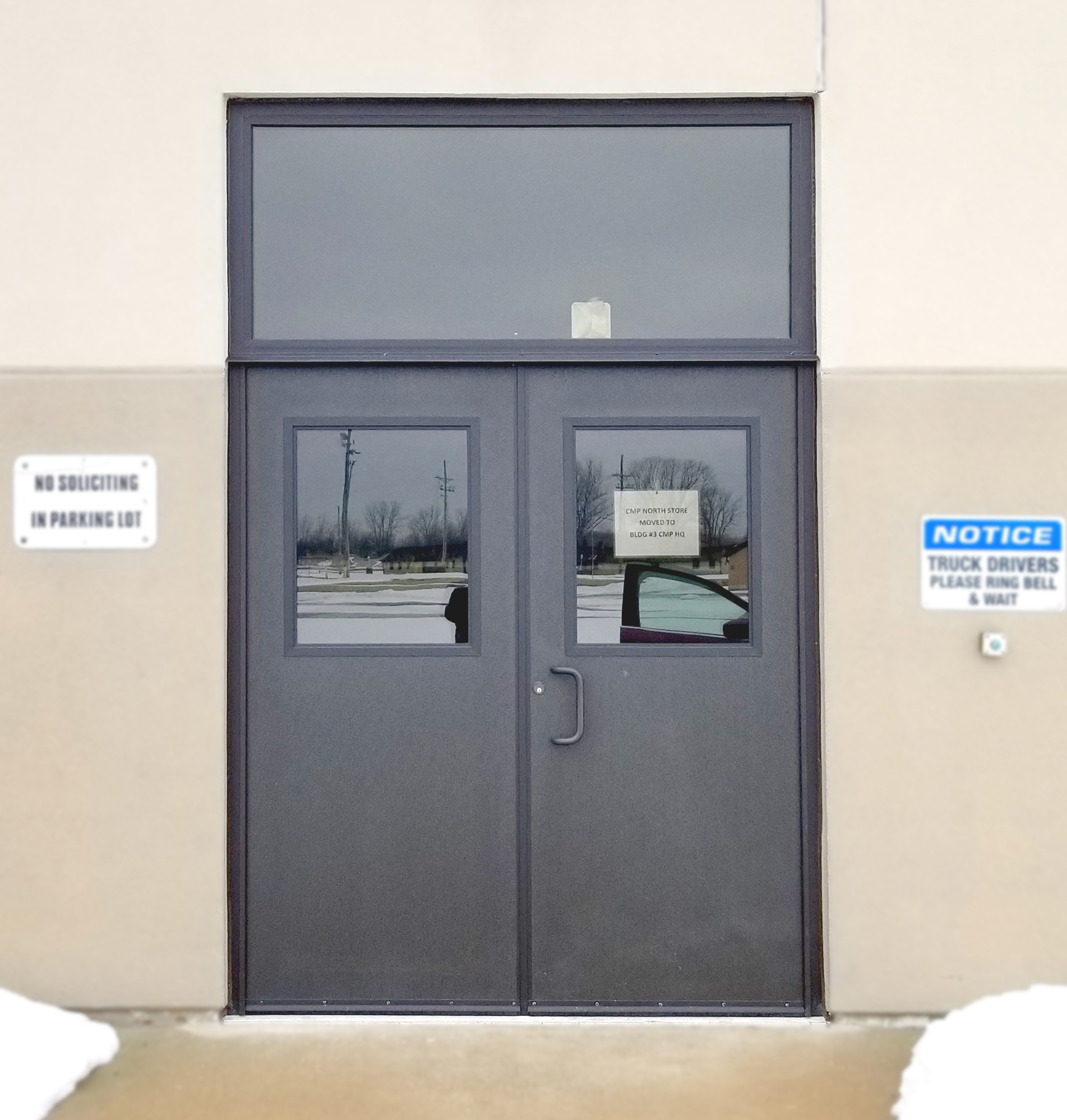

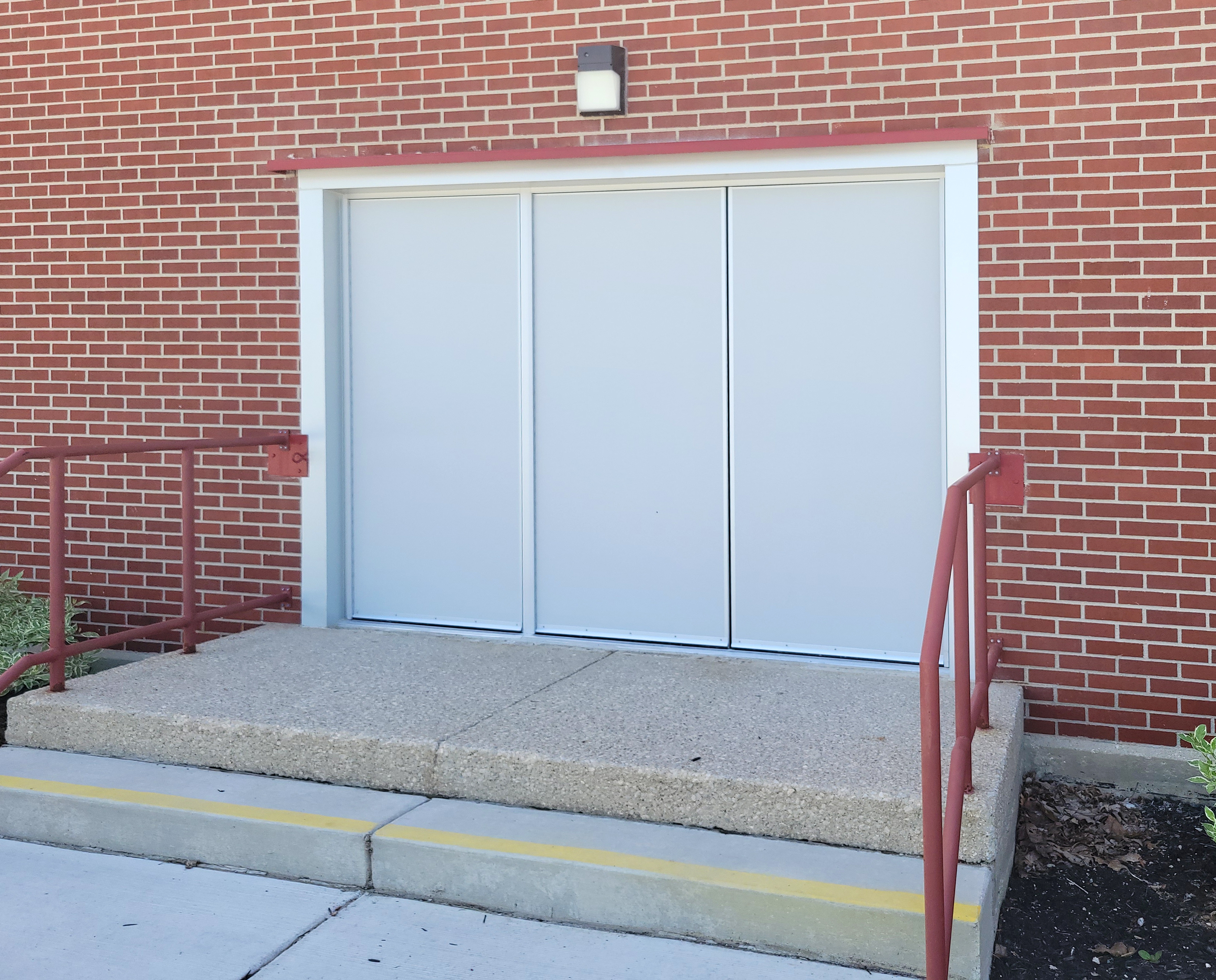

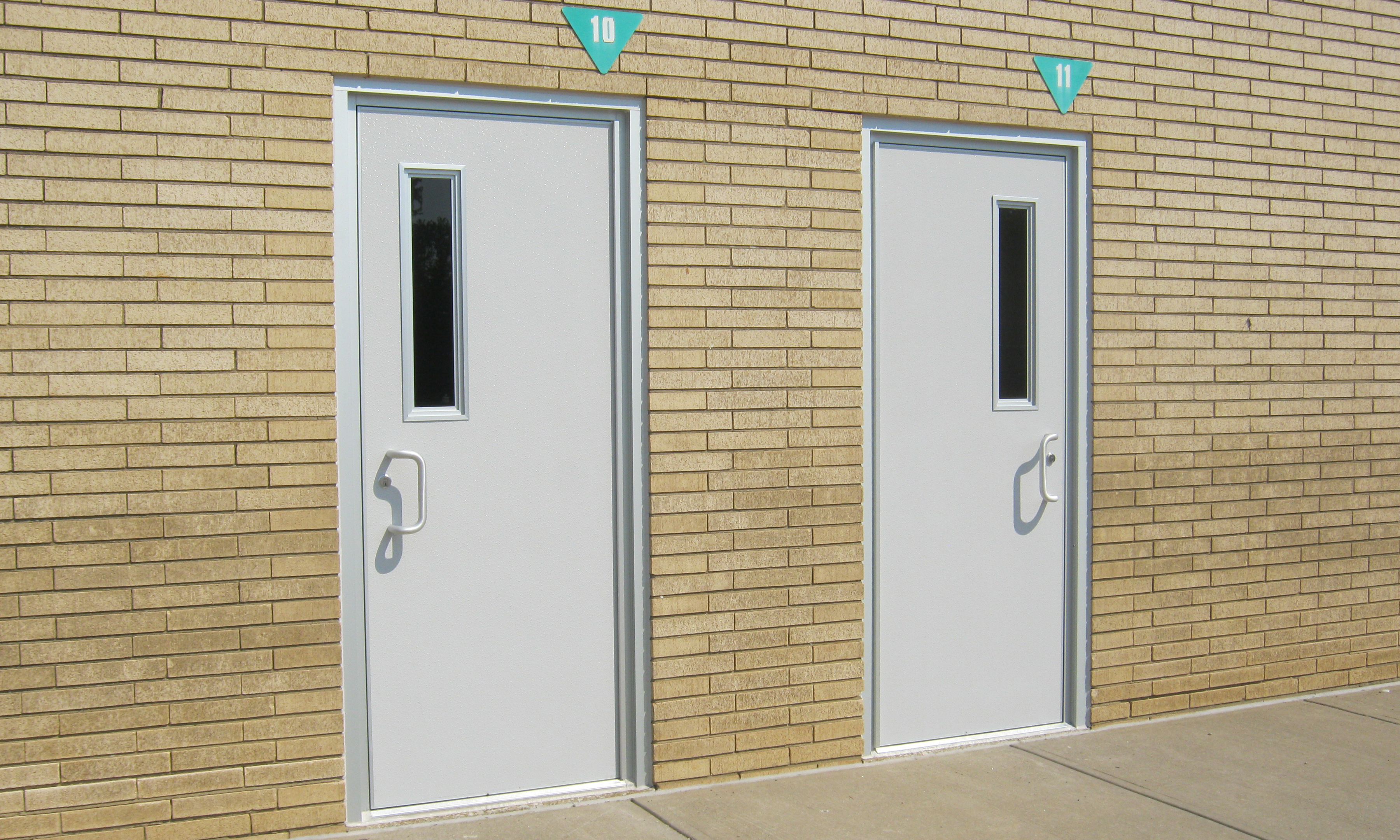

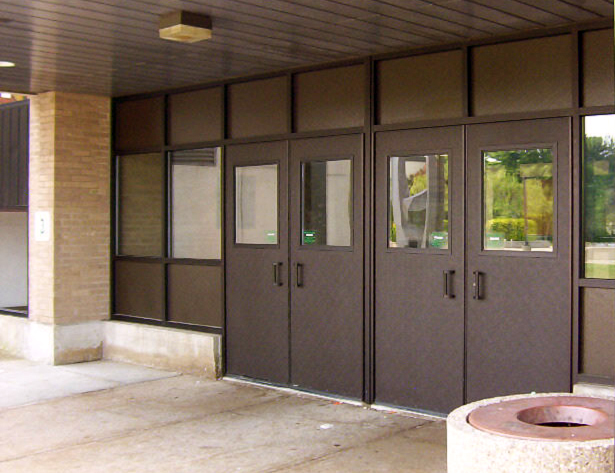

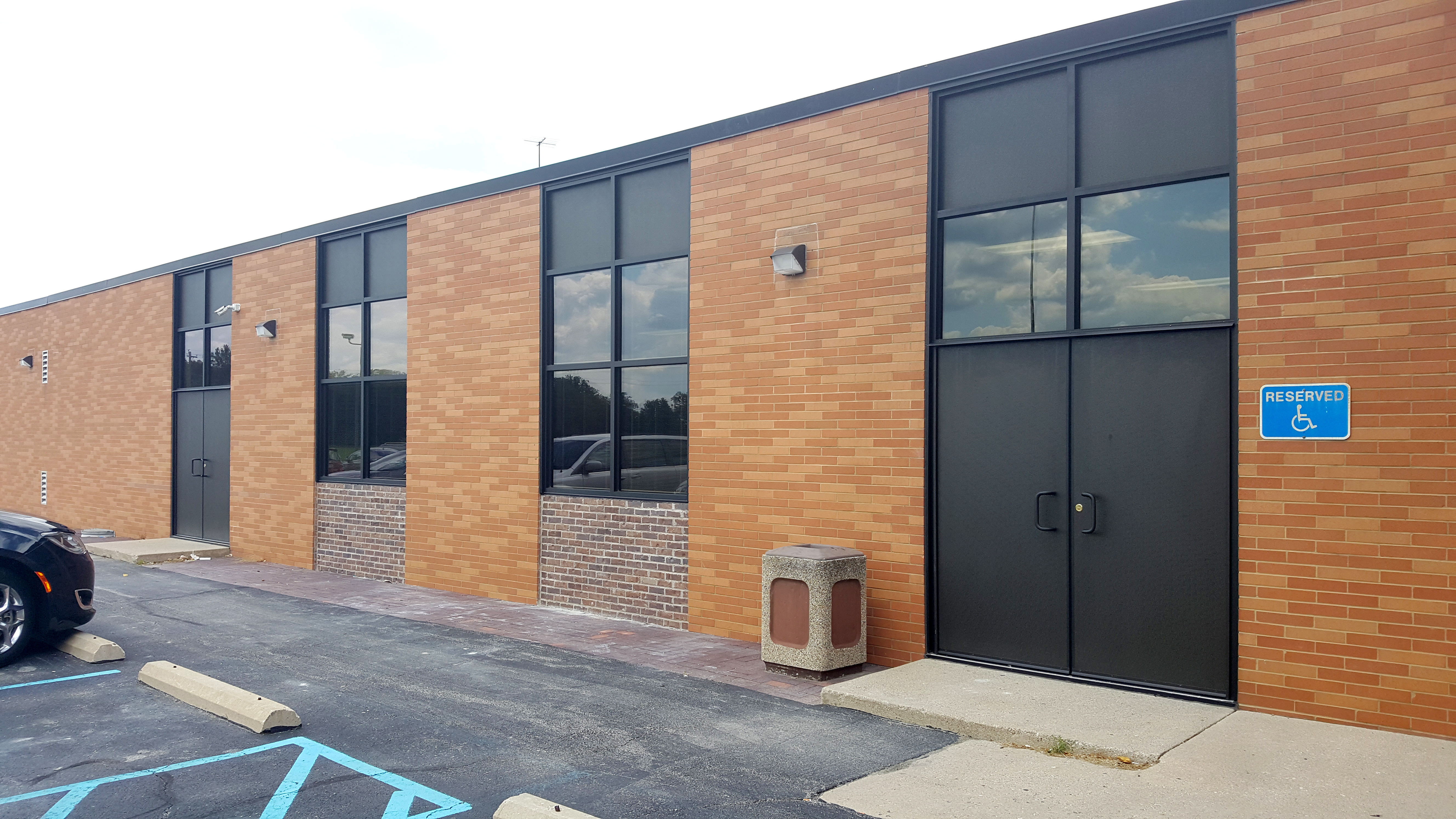

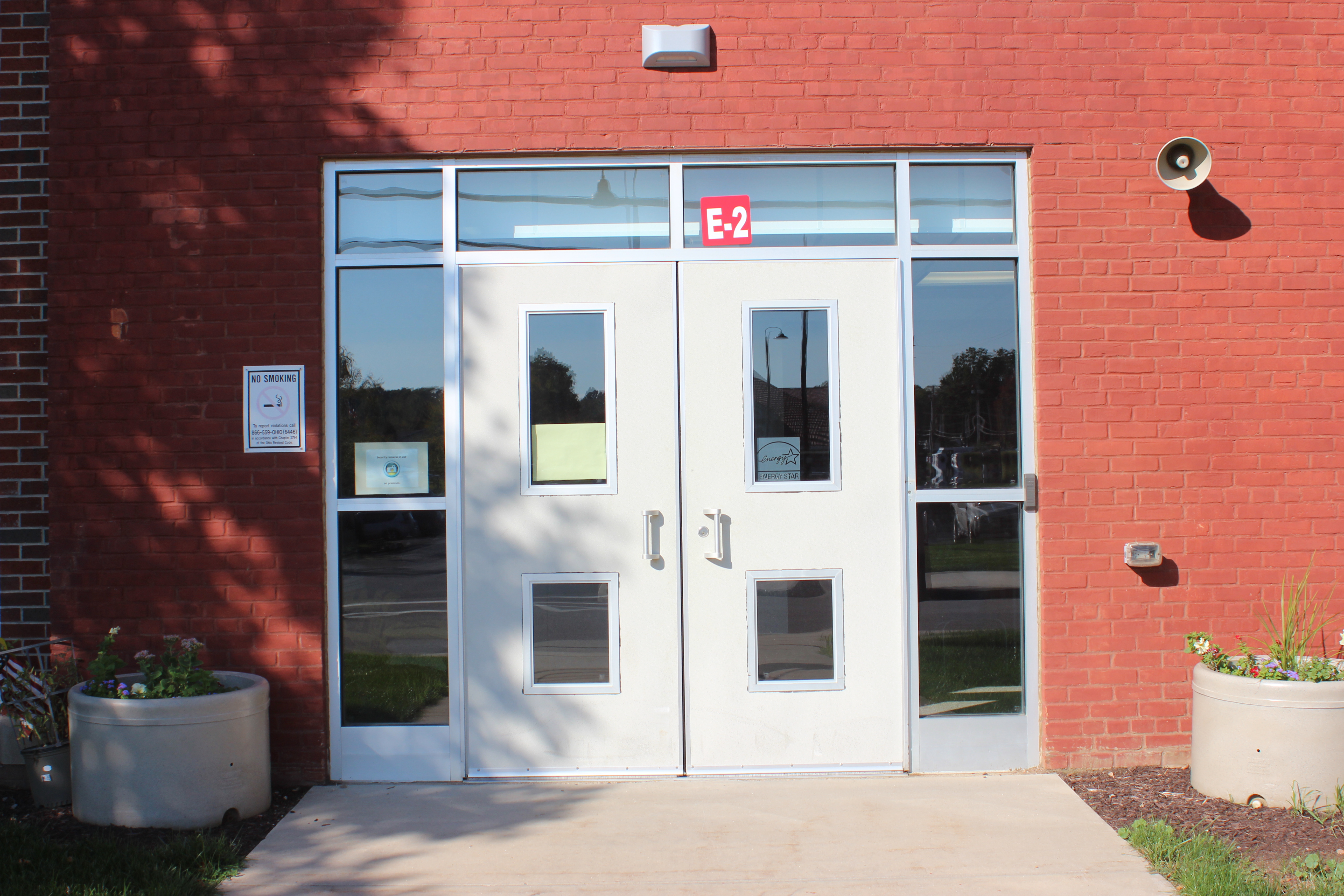

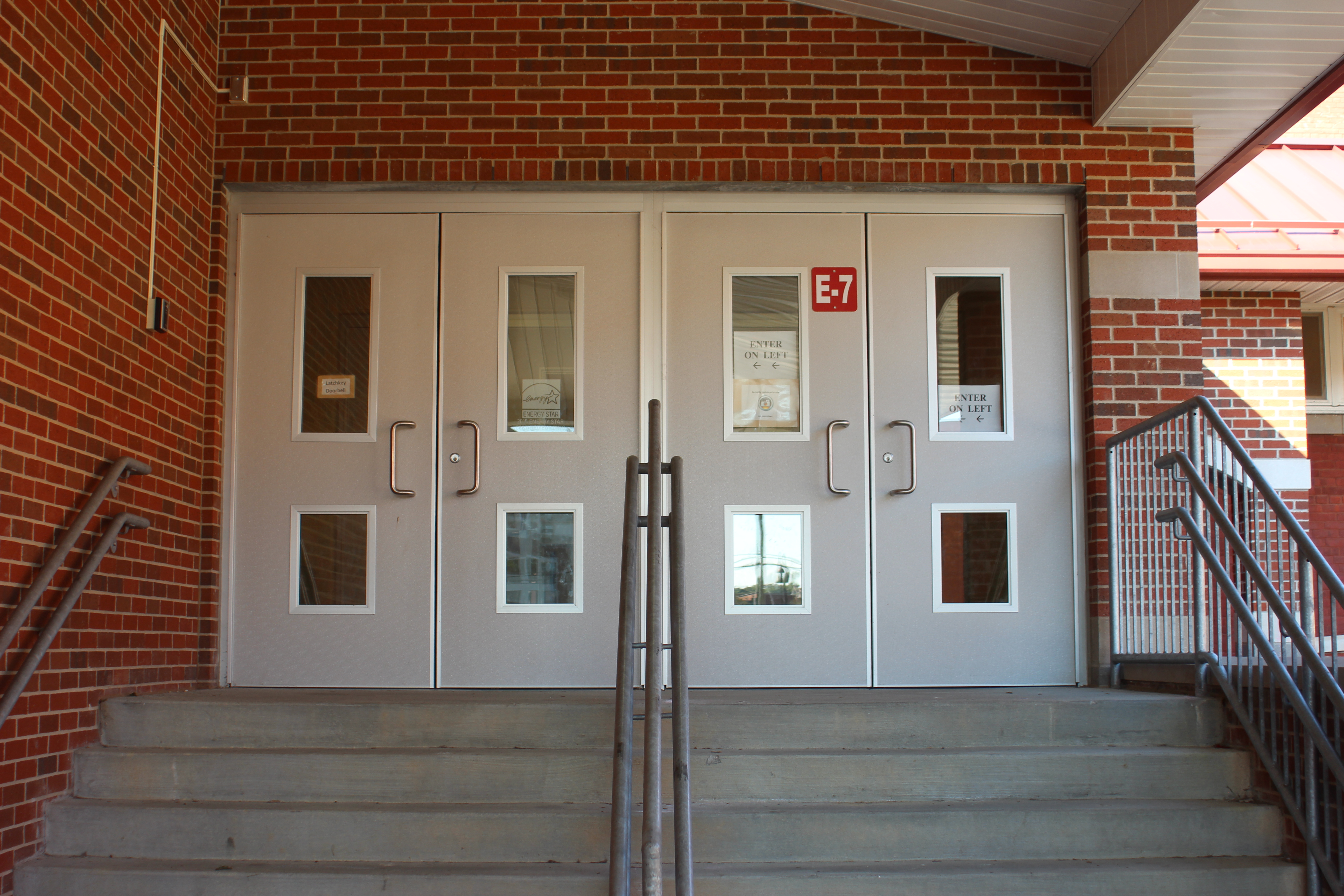

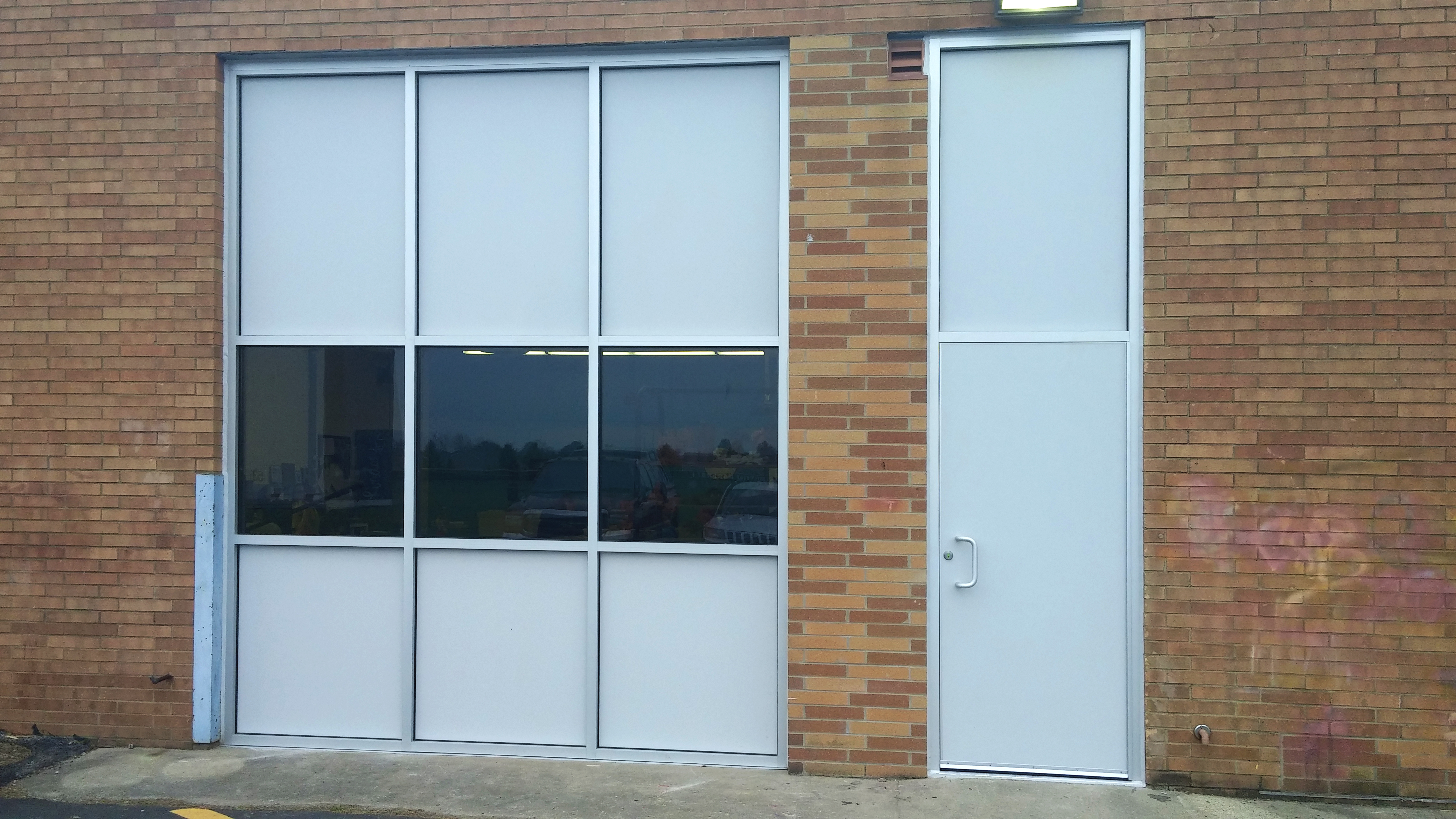

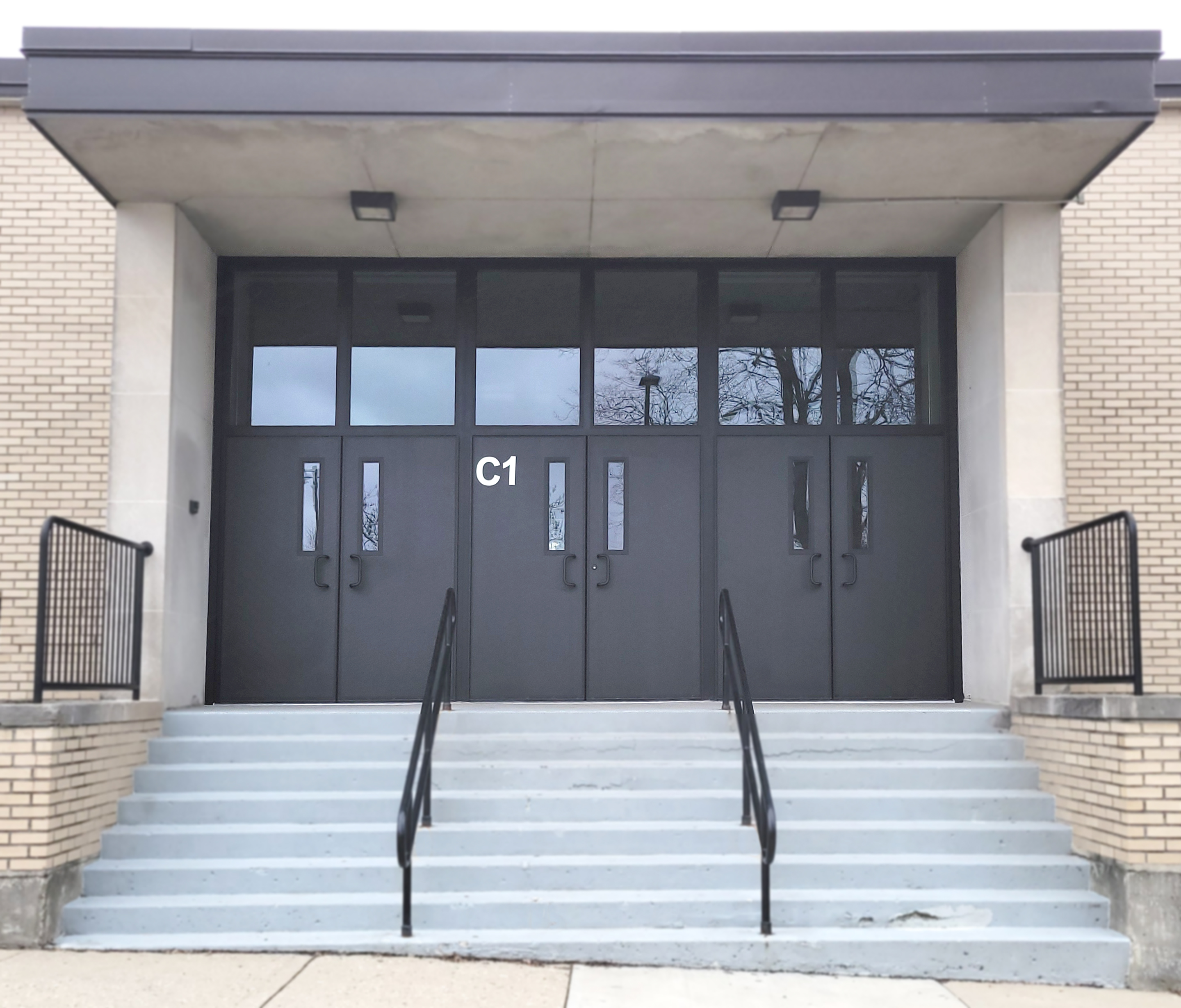

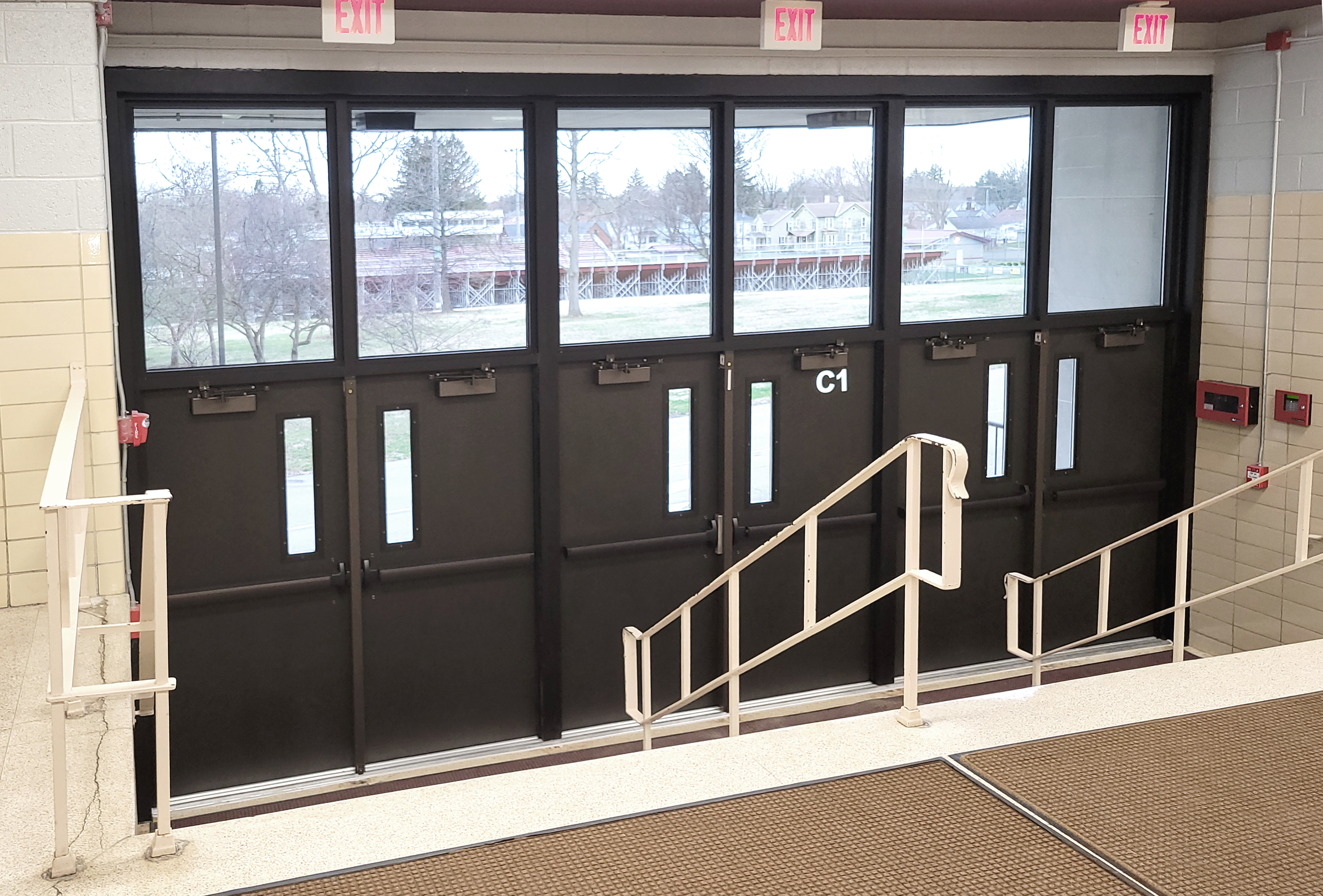

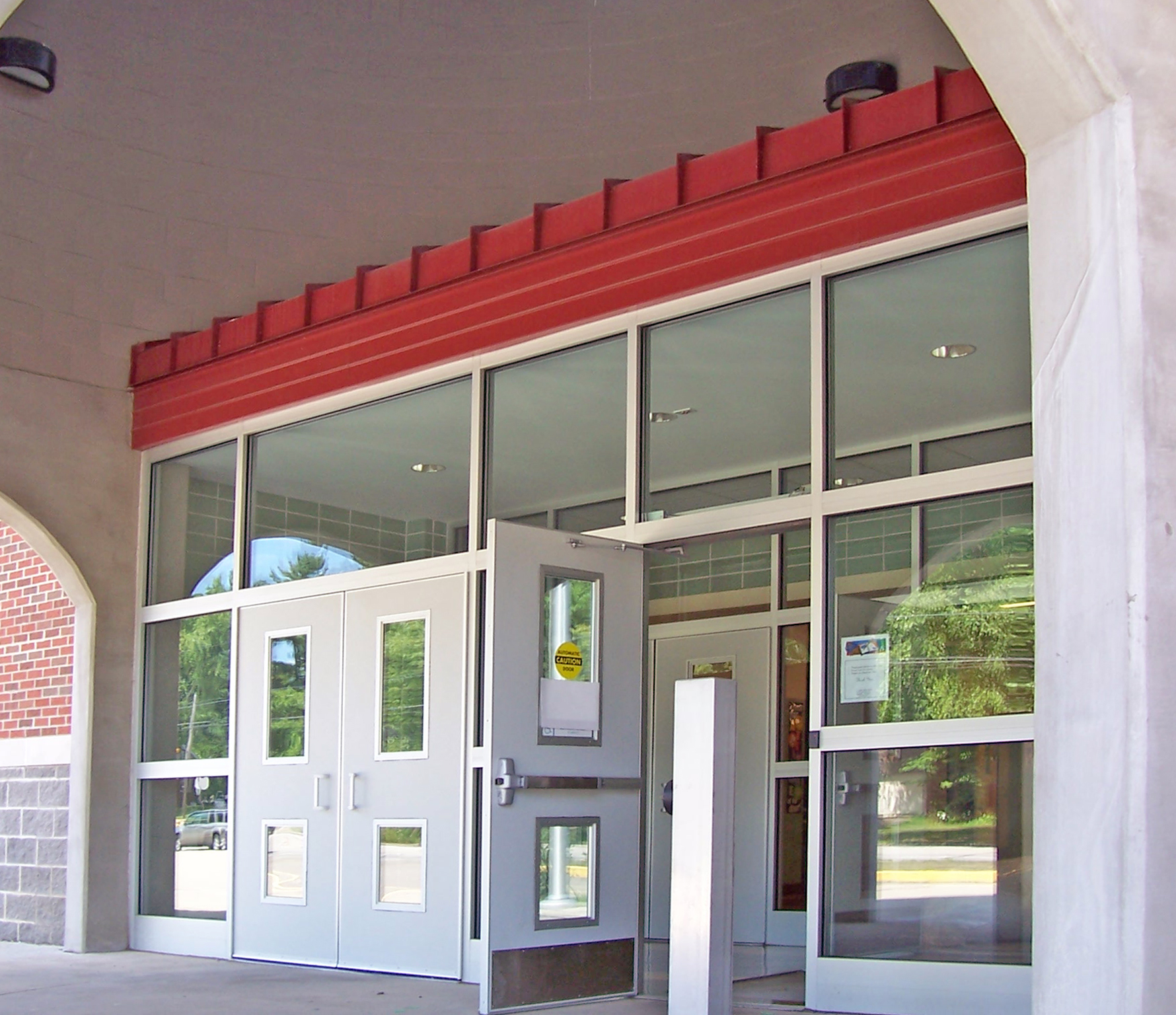

4900 FRP Photos

4900-2.jpg 4900-1.jpg 4900-3.jpg 4900-4.jpg 4900-5.jpg 4900-6.jpg 4900-7.jpg 4900-8.jpg 4900-9.jpg 4900-10.jpg 4900-11.jpg 4900-12.jpg
